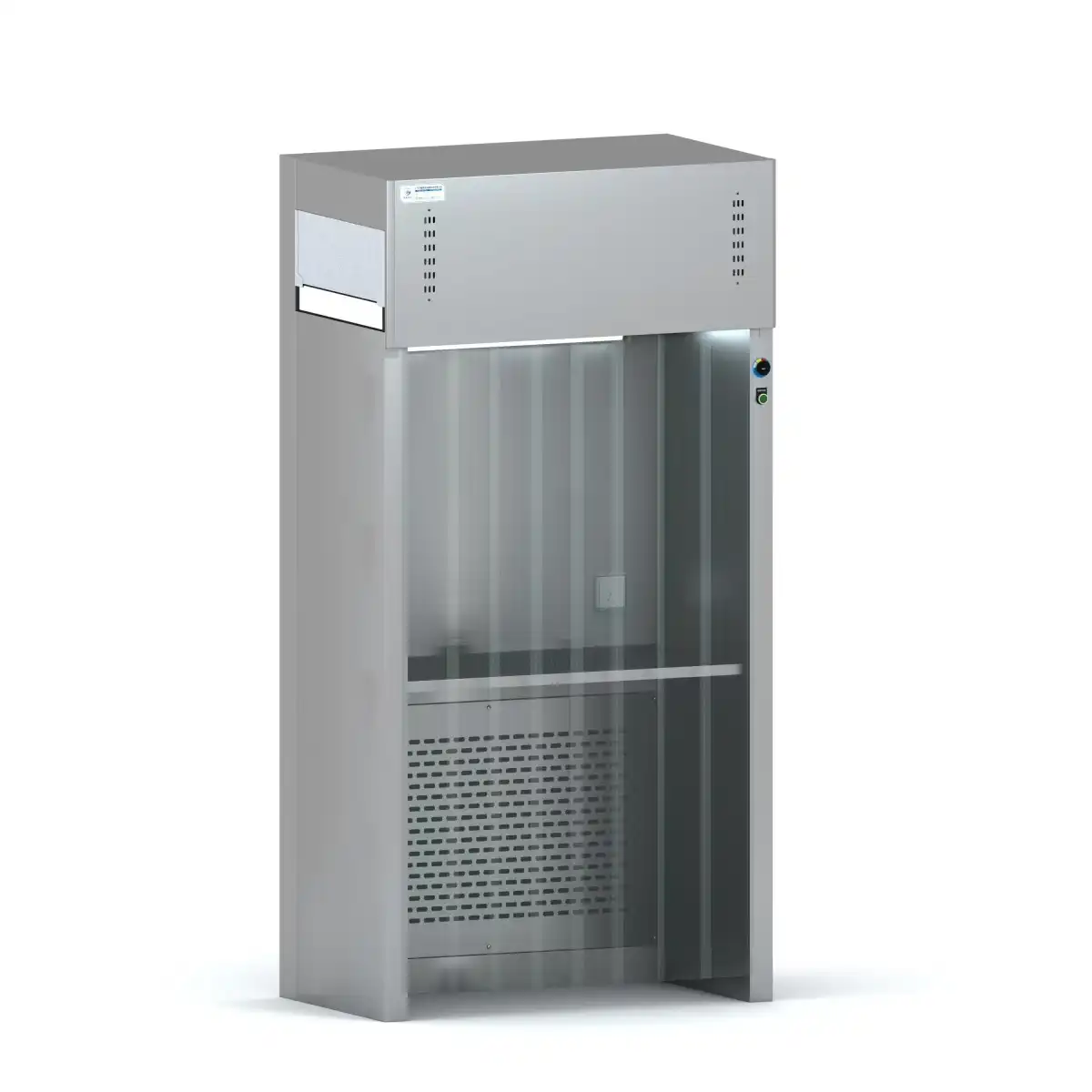

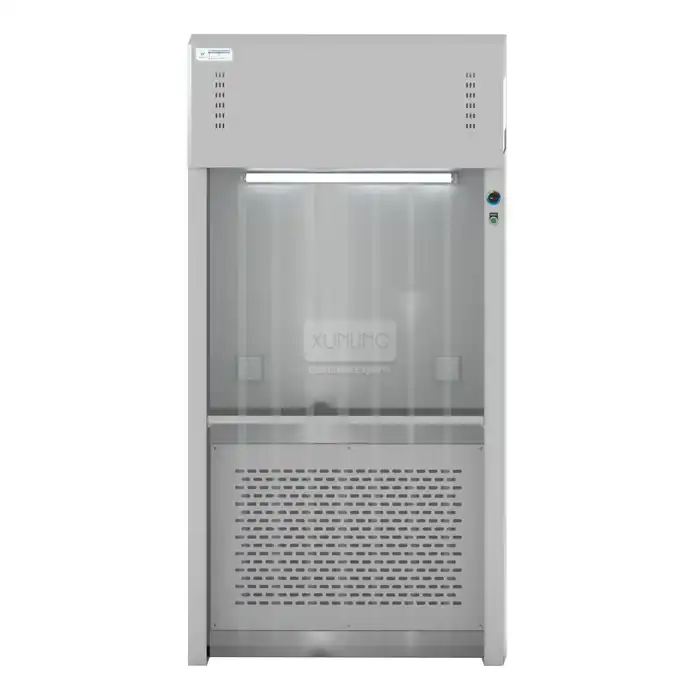

Powder Weighing Booth
Powder Weighing Booth Introduction
A powder weighing booth, also referred to as a dispensing booth, sampling booth, or downflow hood, is a safety device designed for the secure weighing, sampling, and analysis of materials. It ensures protection for both the operator and the surrounding environment by preventing powder contamination, creating a clean and safe workspace.
Technical Specifications
|
Model |
WB-900 |
WB-900B |
WB-1500S |
Customized |
|
External Size: W*D*H mm |
1175*675*2320 |
900*1300*2320 mm |
1500*1300*2320 |
Customized |
|
Internal Size: W*D*H mm |
1035*575*1900 |
800*800*2000 |
1400*800*2000 |
|
|
Power |
0.6KW |
0.5kw |
0.8KW |
|
|
Cleanliness |
ISO 5 and FS209E 100 |
ISO 5 and FS209E 100 |
ISO 5 and FS209E 100 |
|
|
Purified Air face velocity |
0.3～0.6m/s Adjustable |
|||
|
Vibration half peak |
≤5μm |
|||
|
Illuminance |
≥300Lx |
|||
|
Pressure gage |
3 sets ( Initial, Medium,and High Efficiency) |
|||
|
Primary Filter |
G4 Primary Filter |
|||
|
Medium Filter |
F8 Medium Filter |
|||
|
HEPA Filter |
H14 HEPA Filter |
|||
|
Efficiency |
＞99.9999% at 0.3μm (microns）diameter or above |
|||
|
Electric Sockets |
Water Proof and Dust proof |
|||
|
Controller |
Inverter + Switch + PLC LCD touch screen |
|||
|
Material |
304 stainless steel |
|||
|
Airflow Discharged |
10 % |
|||
| Negative Pressure Control |
Maintains a certain negative pressure state |
|||
| Material Selection |
Powder-coated cold-rolled steel and anti-static PVC curtains |
|||
Powder Weighing Booth Features

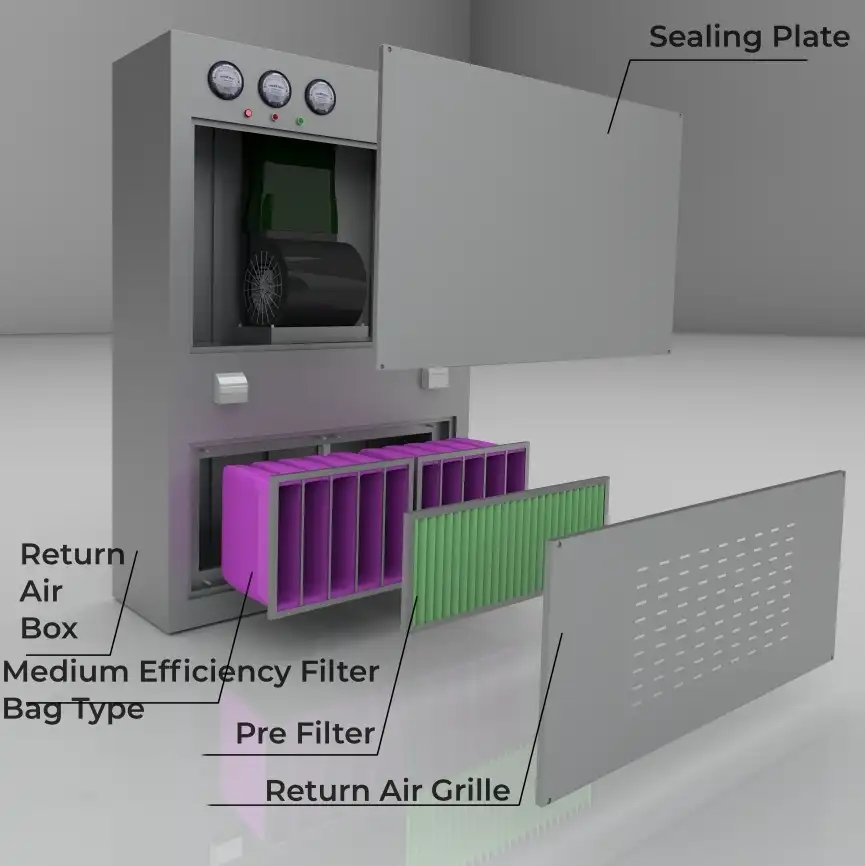

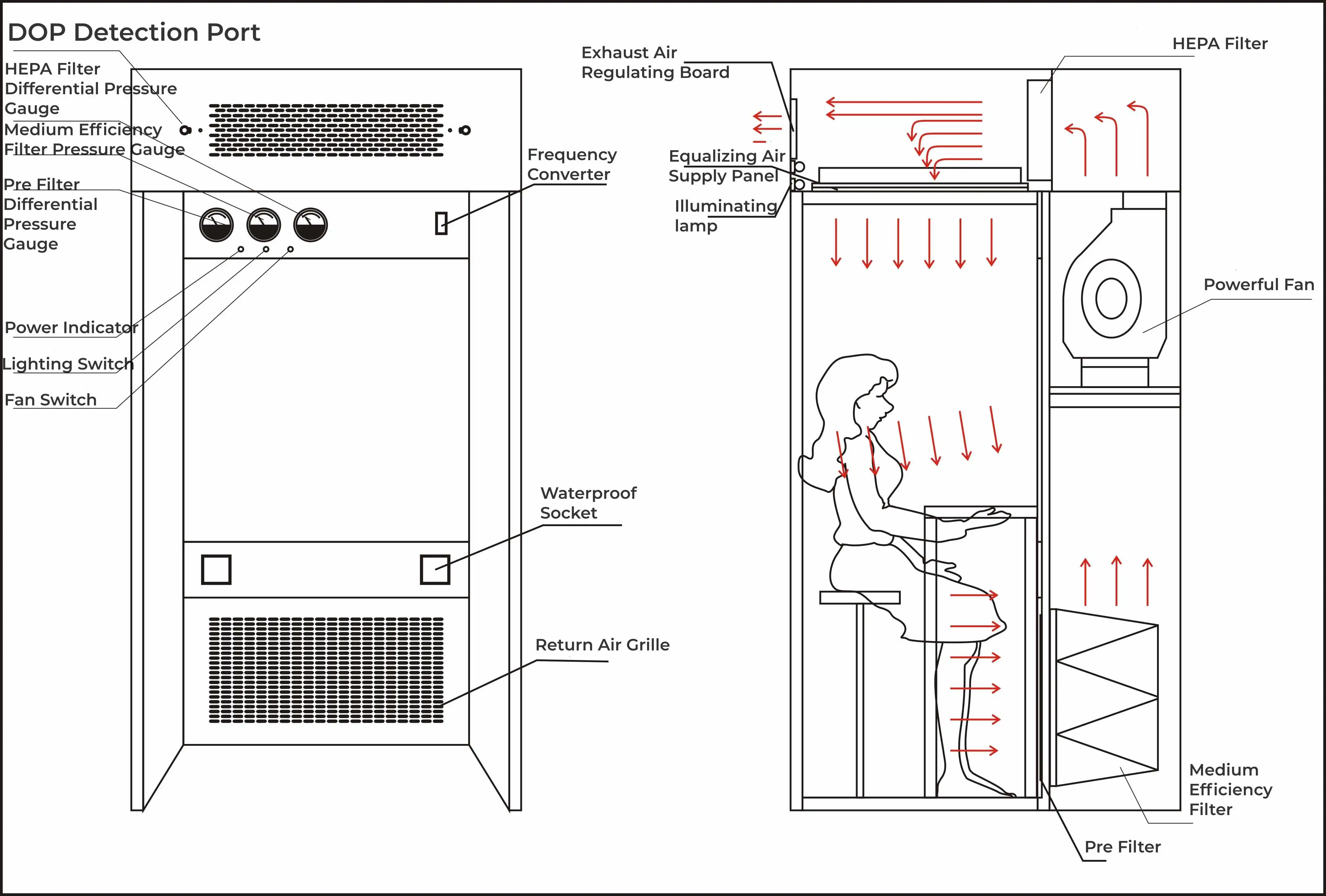

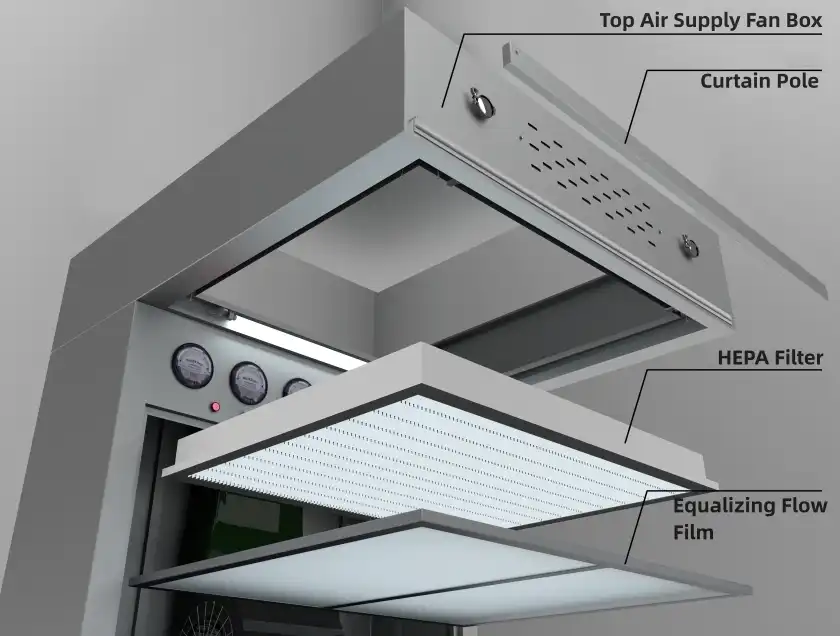

- High-Efficiency Filtration System: Our Powder Weighing Booth is equipped with high-efficiency air filters, such as HEPA filters, which effectively remove particles and microorganisms from the air, providing a relatively sterile environment for weighing operations.
- Negative Pressure Control System: The negative pressure control system maintains a certain negative pressure state inside the booth, preventing outside air and pollutants from entering the operating area and reducing the risk of contamination.

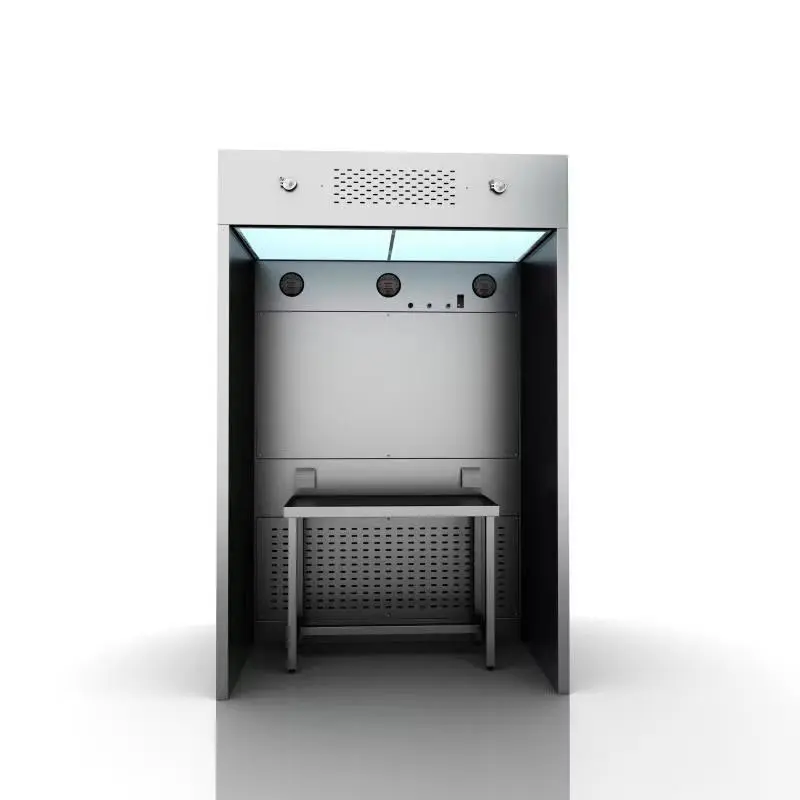

- Durable and Anti-Static Material Selection: The three sides of the weighing booth are made of powder-coated cold-rolled steel, and the other side uses anti-static PVC curtains, ensuring durability and anti-static performance.
Powder Weighing Booth Applications
-
Pharmaceutical Industry: The Powder Weighing Booth are essential for ensuring a safe and controlled environment for operators working with hazardous, toxic, or sensitizing substances in drug production. They provide a critical safeguard against contamination and exposure.
- Chemical Industry: In the chemical sector, these booths offer protection when handling reactive or potentially dangerous powders. Their controlled airflow and filtration systems help mitigate health risks associated with chemical exposure.
- Food Industry: The products are used to handle ingredients like spices, additives, or powdered food products, ensuring safe, contamination-free processes while maintaining strict hygiene standards.
- Building Materials Sector: These booths are employed to handle substances such as cement or gypsum powders, which require containment to prevent respiratory issues or accidental exposure to harmful materials.
- Re-circulatory Booths: Ideal for powder operations, these booths continuously recirculate air within the workspace, providing an effective containment system that keeps hazardous particles from escaping, ensuring operator safety.
- Once-through Booths: Designed for environments where solvent or fume vapors are prevalent, these booths direct air through a filtration system before releasing it outside, ensuring the removal of harmful gases and maintaining air quality in the workspace.
Product Video:
R&D Capacity
At Xi'an Xunling Electronic Technology Co., Ltd, we have a strong R&D team dedicated to designing and manufacturing high-quality powder weighing booths. Our team works closely with customers to understand their specific needs and develop customized solutions.
After-Sales Support
We provide comprehensive after-sales support, including installation, maintenance, and repair services. Our team is committed to ensuring that our customers receive the best possible service and support.
Why Choose Us
- High-Quality Products: We design and manufacture high-quality booths that meet the highest standards of safety and accuracy.
- Competitive Prices: We offer competitive prices without compromising on quality.
- Excellent Customer Service: Our team is dedicated to providing exceptional customer service and support.
FAQ
What is the purpose of the Powder Weighing Booth?
A booth is designed to provide a sterile, pollution-free environment for weighing powder materials.
What types of industries use the weighing booths?
The booths are primarily used in the pharmaceutical industry, but also in other industries such as chemical, food, and building materials.
What are the benefits of using a booth?
The benefits of using a weighing booth include accurate and safe powder weighing, reduced risk of contamination, and compliance with regulations.
Contact Us
If you have any questions or would like to learn more about our powder weighing booths, please do not hesitate to contact us. We are committed to providing the best possible service and support to our customers.
Email: xalabfurniture@163.com
YOU MAY LIKE

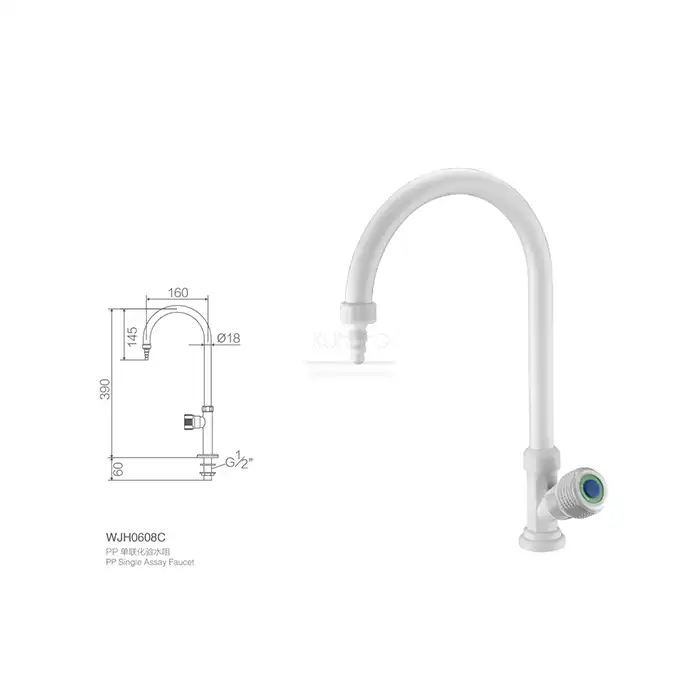

_1735388062320.webp "Laboratory Water Taps")
