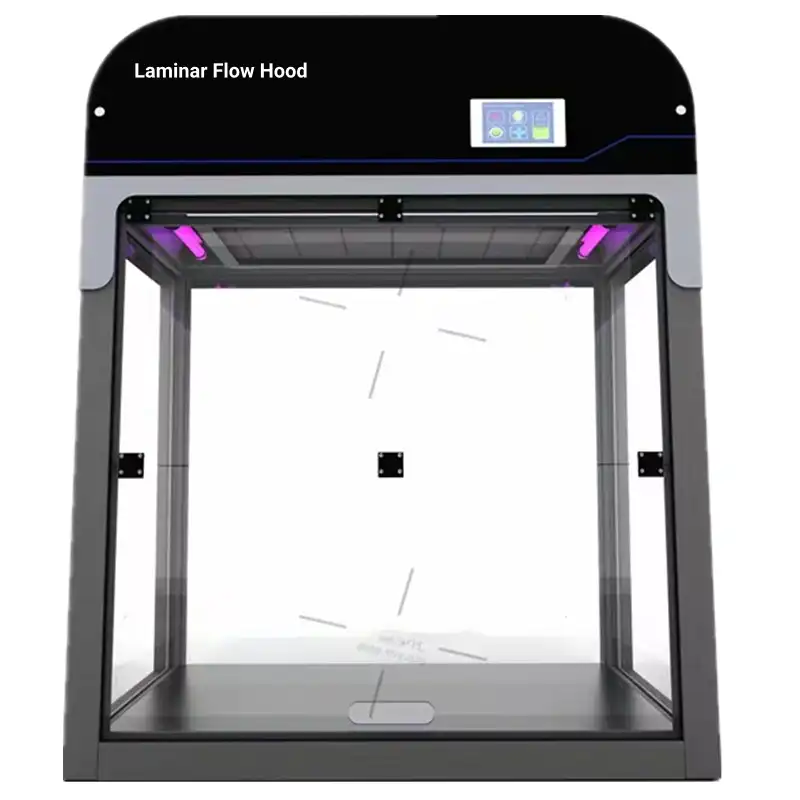

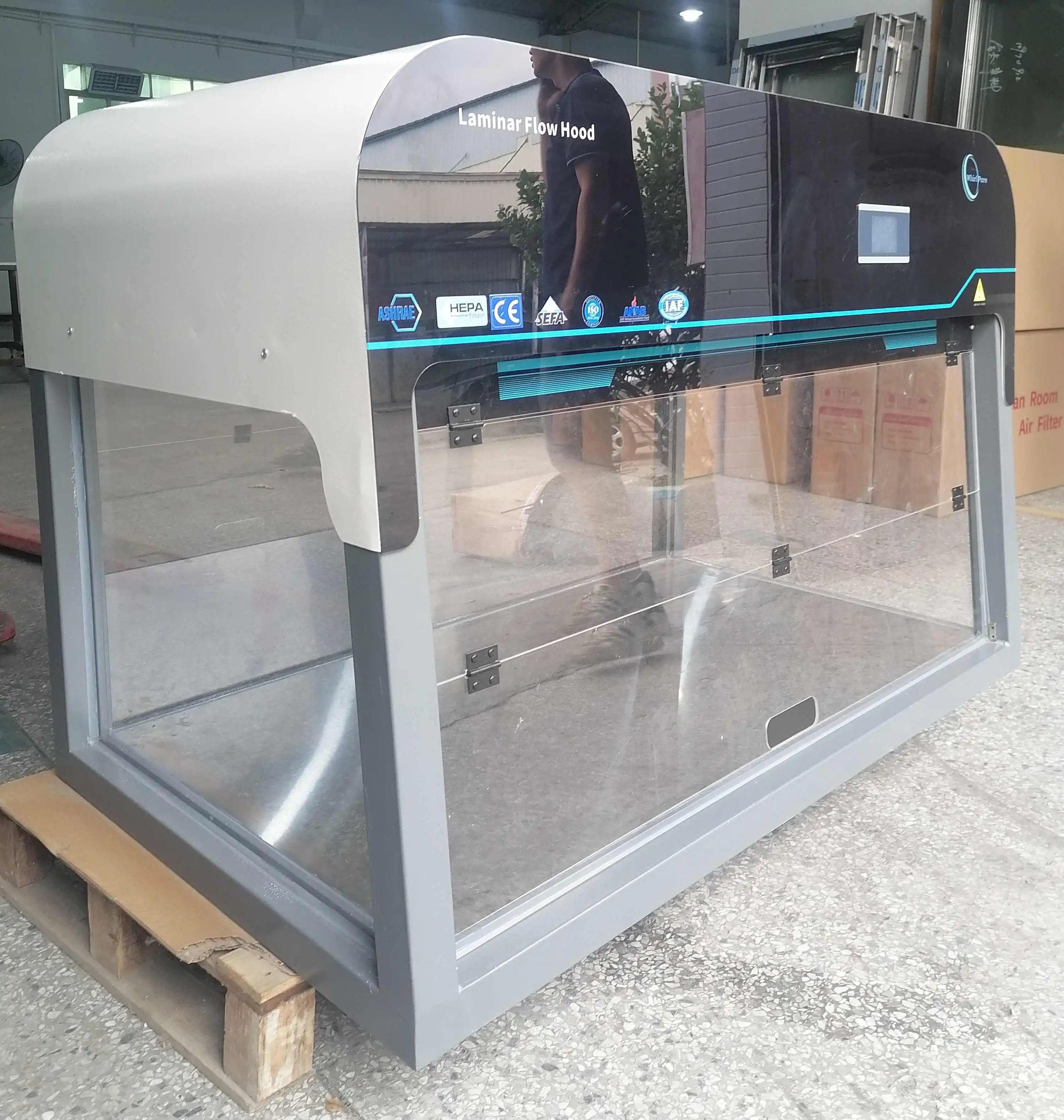

Vertical Laminar Airflow Hood
Vertical Laminar Airflow Hood Introduction
A vertical laminar airflow hood is a device that generates a downward airflow to maintain a sterile, controlled environment for handling sensitive materials. Commonly found in laboratories, pharmacies, and research settings, these hoods are used for tasks such as cell culture, microbiological studies, and pharmaceutical compounding.
Xi'an Xunling Labcleantech, a leading manufacturer of Vertical Laminar Airflow Hood, offers a range of high-quality products designed to meet the diverse needs of modern laboratories. Our hoods are engineered with precision and built to deliver exceptional performance, ensuring a clean and controlled environment for your critical work.
Technical Specifications
|
Model |
CB790S (Standard Height) |
CB790T (Tall Version) |
CB1190S (Standard Height) |
CB1190T (Tall Version) |
Customized | ||
|
External Size W*D*H |
890*740*850 mm |
900*750*1100 mm |
1290*740*850 mm |
1290*740*1100 mm |
Customized | ||
|
Internal size W*D*H |
790*640*450 mm |
800*650*700 mm |
1190*640*450 mm |
1190*640*700 mm |
|||
|
Weight |
40Kg |
50Kg |
60Kg |
70Kg |
|||
|
Max Purified Air Volume |
5.6 m³/min |
11.2m³/min |
|||||
| Blower / Fan |
EC Axial Flow Fan*1 |
EC Axial Flow Fan*2 | |||||
| Lighting |
LED, 8W, 300 lux |
LED, 16W, 600lux | |||||
| UV Light |
254 nm, 15W |
254 nm, 30W | |||||
| Airflow Alarm |
visually and audibly |
||||||
|
Airflow Rate & Blower speed |
Adjustable | ||||||
| Sides Materials |
Transparent Acrylic Plate |
||||||
| Worktop Materials |
Stainless Steel |
||||||
| Overall structure |
Ready to use, no need assembling onsite, no need ductwork |
||||||
|
Pre Filter Efficiency |
＞95% at aerosol and particulates of 0.5μm (microns）diameter or above |
||||||
|
HEPA Filter Efficiency |
＞99.997% at aerosol and particulates of 0.3μm (microns）diameter or above |
||||||
|
Cleanliness Level |
ISO 5 and FS209E 100 |
||||||
Product Details
Our Vertical Laminar Airflow Hood are meticulously designed to provide a sterile and controlled working environment.
HEPA Filtration: A high-efficiency HEPA filter removes 99.997% of airborne particles as small as 0.3 microns, ensuring a clean and contaminant-free workspace.
Vertical Downward Airflow: Air is drawn from the top of the cabinet, filtered, and then flows downward in a laminar fashion over the work surface, creating a unidirectional airflow that prevents contamination.
Durable Construction: Constructed from high-quality materials like stainless steel, our hoods are built to withstand the rigors of daily laboratory use.
User-Friendly Design: The intuitive design and ergonomic features make our hoods easy to operate and maintain.
Vertical Laminar Airflow Hood Features
Sterile Work Environment: Vertical Laminar Airflow Hood Provides a clean and contaminant-free workspace for sensitive procedures.
Particle Removal: Effectively removes airborne particles, dust, and microorganisms.
Protection for Samples: Safeguards samples from contamination during handling and processing.
Easy to Clean: The smooth surfaces and sloped work surface allow for easy cleaning and disinfection.
Energy Efficient: Designed to minimize energy consumption.
Application Locations
Our products are widely used in a variety of industries and applications, including:
Pharmaceutical Industry: Aseptic operations, drug production, formulation development.
Biotechnology Companies: Cell culture, genetic engineering research, molecular biology.
Hospitals and Medical Institutions: Drug preparation, bacterial culture, microbiology testing.
Food and Beverage Industry: Microbial testing, quality control, product development.
Electronic Manufacturing Industry: Preventing static electricity and particle contamination.
After-Sales Support
At Xi'an Xunling, we are committed to providing our customers with exceptional after-sales support. Our team of experienced technicians is available to assist with:
Installation: We ensure your Vertical Laminar Airflow Hood is installed correctly and efficiently.
Training: We provide comprehensive training on the operation and maintenance of your hood.
Maintenance: We offer regular maintenance services to keep your hood in optimal working condition.
Troubleshooting: We are available to assist with any technical issues you may encounter.
Why Choose Xi'an Xunling?
Quality Products: We manufacture our products using high-quality materials and components.
Reliable Performance: Our hoods are designed for reliable and consistent performance.
Competitive Pricing: We offer competitive pricing on all our products.
Excellent Customer Service: We are dedicated to providing our customers with exceptional service and support.
Industry Expertise: We have 10 years of experience in the laboratory equipment industry.
FAQ
Q: What is the difference between a Vertical Laminar Airflow Hood and a Biological Safety Cabinet?
A: It provides a clean workspace by removing contaminants from the air, but it does not offer protection for the operator from biological agents. A Biological Safety Cabinet, on the other hand, provides both product and operator protection.
Q: What is the HEPA filter efficiency rating?
A: Our HEPA filters have a 99.997% efficiency rating for particles as small as 0.3 microns.
Q: What are the different sizes available?
A: We offer a range of sizes to suit your specific needs. Please refer to the technical specifications table for available dimensions.
Q: What is the warranty period?
A: Our products come with a 5 years warranty.
Contact Us
For more information about our Vertical Laminar Airflow Hoods or to discuss your specific requirements, please contact us at xalabfurniture@163.com. We are happy to answer your questions and provide a personalized solution for your laboratory needs.
