Where are Mixed Flow Fans Typically Used?

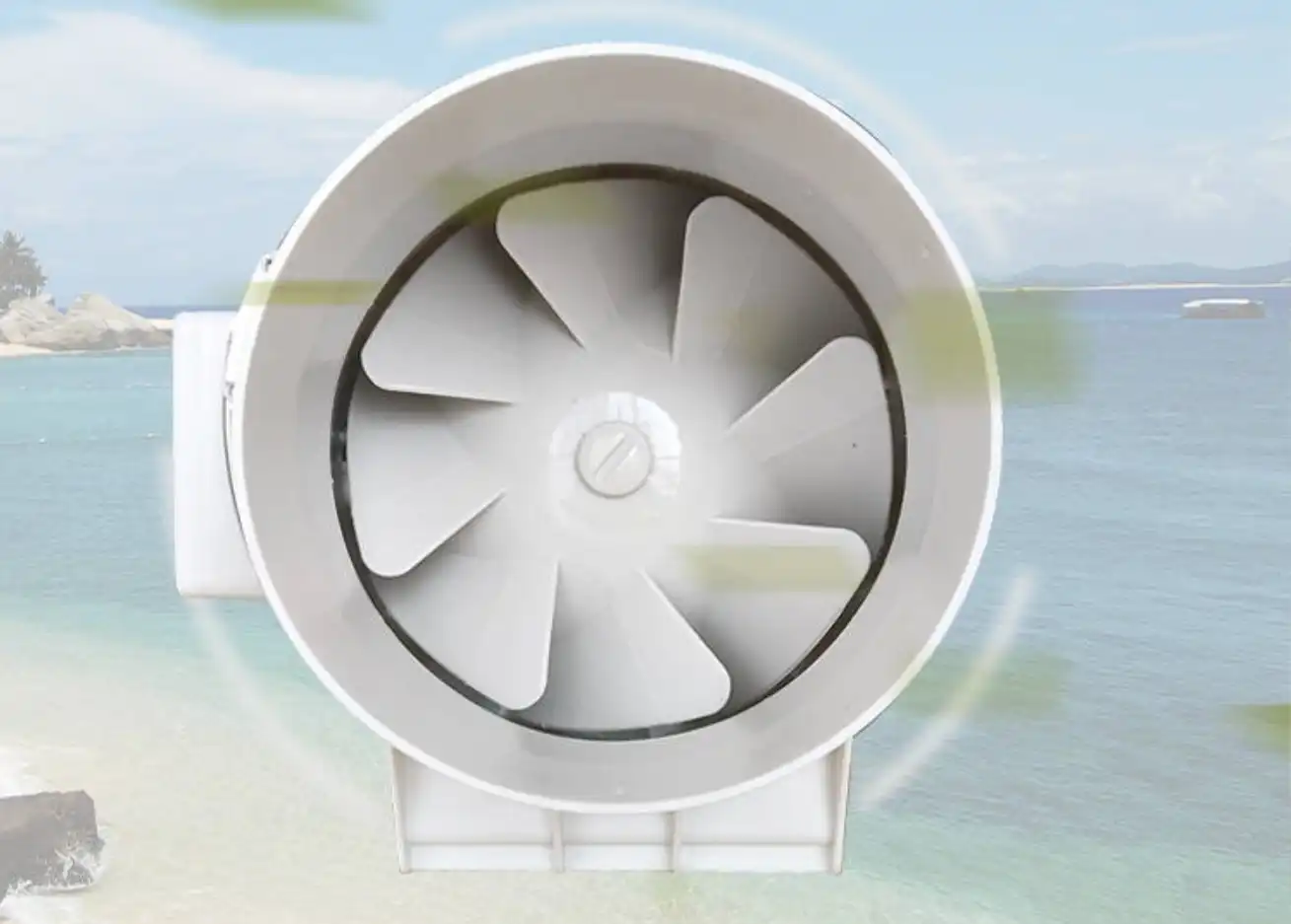

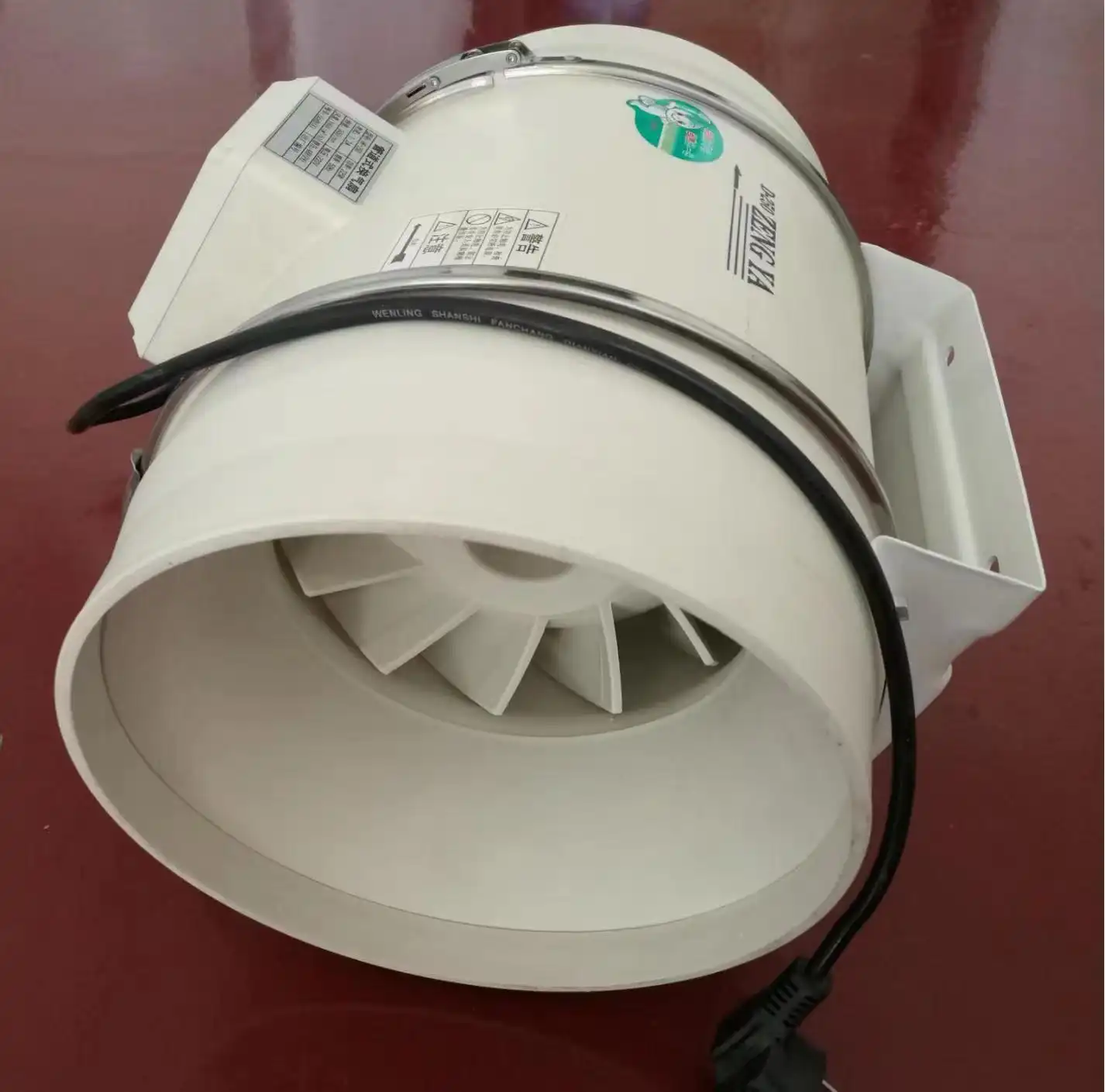

Mixed Flow Fans represent an innovative fusion of axial and centrifugal fan technologies, offering versatile ventilation solutions across numerous industries and applications. These remarkable devices are typically deployed in environments requiring a balanced combination of high airflow capacity and moderate to high static pressure. Mixed Flow Fans have become the preferred choice in laboratories, healthcare facilities, educational institutions, industrial settings, and commercial buildings where efficient air movement, controlled ventilation, and contamination prevention are critical operational requirements. Their unique design allows them to deliver superior performance while occupying minimal space, making them ideal for installations where traditional fans would be impractical or inefficient.

Applications in Laboratory and Research Environments

The controlled environment of laboratories and research facilities demands precise ventilation solutions that Mixed Flow Fans expertly provide. These specialized environments require ventilation systems that can maintain air quality while ensuring the safety of personnel and the integrity of sensitive experiments.

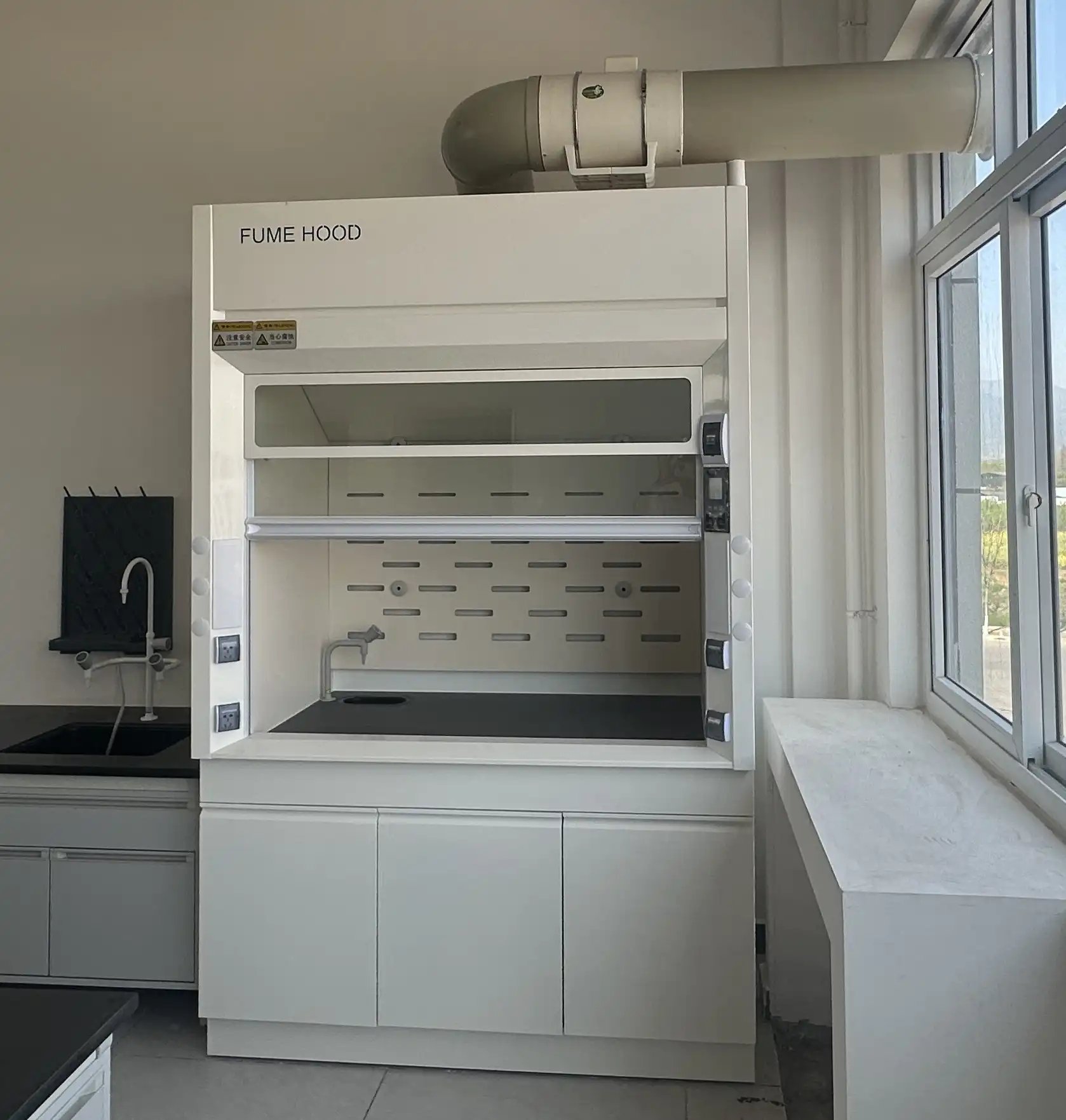

Advanced Fume Hood Exhaust Systems

Mixed Flow Fans serve as essential components in laboratory fume hood exhaust systems, where their unique design characteristics provide significant advantages. The hybrid nature of these fans—combining the directional flow properties of axial fans with the pressure-generating capabilities of centrifugal fans—creates an ideal ventilation solution for handling potentially hazardous fumes and vapors. When installed in fume hood systems, Mixed Flow Fans efficiently extract airborne contaminants while maintaining the negative pressure gradient necessary to prevent backflow into the laboratory workspace. Their high-efficiency operation ensures consistent air removal rates, which is critical for maintaining safe working conditions during chemical procedures and experiments involving volatile substances. Additionally, the PP material construction of Xi'an Xunling's Mixed Flow Fans offers excellent resistance to corrosive chemicals commonly encountered in laboratory environments, extending the operational lifespan of the ventilation system while reducing maintenance requirements and associated downtime. With static pressure capabilities ranging from 150 Pa in smaller units to an impressive 630 Pa in larger models, these fans can overcome the resistance presented by complex ductwork systems typical in laboratory installations, ensuring reliable performance in even the most demanding research facilities.

Specialized Biological Safety Cabinets

In biological research facilities and medical laboratories, Mixed Flow Fans play a crucial role in maintaining the integrity of biological safety cabinets. These specialized containment units rely on precisely controlled airflow to protect personnel, the environment, and biological samples from potential contamination. The Mixed Flow Fan design excels in this application due to its ability to deliver consistent, uniform airflow patterns essential for maintaining the protective air barrier at the cabinet's front opening. Xi'an Xunling's Mixed Flow Fan series, with their CE and ISO 9001 certifications, provide the reliability and performance precision necessary for these critical safety applications. The low noise operation—ranging from just 31 dB in smaller units to 65 dB in the largest models—is particularly beneficial in laboratory settings where noise distractions can impact research accuracy and worker comfort. Additionally, the fans' ability to maintain steady airflow rates regardless of filter loading conditions helps ensure continuous protection throughout the operational period between maintenance intervals. The available range of fan diameters (100-315 mm) and airflow capacities (220-2900 m³/h) allows for appropriate sizing to match specific biological safety cabinet requirements, optimizing both performance and energy efficiency. This application demonstrates the critical importance of Mixed Flow Fans in environments where air management directly impacts biosafety and contamination control protocols.

Environmental Testing Chambers

Environmental testing chambers represent another specialized application where Mixed Flow Fans demonstrate exceptional utility. These controlled environments simulate specific atmospheric conditions to test material durability, product stability, and biological responses under various environmental parameters. The precise airflow control provided by Mixed Flow Fans is instrumental in maintaining uniform temperature, humidity, and air circulation throughout the testing chamber. Xi'an Xunling's Mixed Flow Fan series, with rotation speeds between 2450-2600 r/min, delivers the consistent performance necessary for reliable test results. The fans' ability to operate efficiently across varying pressure conditions makes them particularly valuable in applications requiring rapid environmental condition changes. In climate simulation chambers, the fans' high efficiency design minimizes heat generation from the fan itself, which could otherwise impact temperature control accuracy. The durable PP construction ensures long-term reliability even when exposed to challenging test conditions involving temperature extremes or corrosive atmospheres. Furthermore, the compact design of these fans allows for their integration into space-constrained chamber designs without compromising the testing volume. Environmental monitoring facilities particularly benefit from the larger models with airflow capacities up to 2900 m³/h, which can rapidly refresh chamber air to create new test conditions while maintaining uniform distribution throughout the testing space, ensuring that all test samples experience identical environmental exposure.

Industrial and Manufacturing Applications

Beyond laboratory settings, Mixed Flow Fans find extensive use across various industrial and manufacturing operations where effective ventilation is critical for process control, worker safety, and product quality.

Chemical Processing Ventilation

In chemical processing facilities, Mixed Flow Fans play a vital role in maintaining safe working environments while supporting process efficiency. These specialized fans excel in applications requiring the extraction of chemical vapors, fumes, and airborne particulates that could pose health risks to workers or interfere with sensitive manufacturing processes. The superior pressure-generating capabilities of Mixed Flow Fans—with Xi'an Xunling models offering static pressure ratings from 150 Pa to 630 Pa—enable them to overcome the resistance of sophisticated filtration systems and extended ductwork networks common in chemical facilities. The PP construction material used in these fans provides excellent chemical resistance, ensuring longevity even when exposed to corrosive atmospheres. For processes involving flammable substances, properly rated Mixed Flow Fans offer the necessary safety features while maintaining efficient operation. The available range of capacities (220-2900 m³/h) allows facility engineers to specify appropriate ventilation solutions for different process areas, from small-scale specialty chemical production to larger bulk material handling zones. Additionally, the energy efficiency of these fans translates to lower operational costs for continuous ventilation systems, which often must run 24/7 in chemical manufacturing environments. The ability to maintain consistent airflow despite varying system conditions helps ensure that exposure limits for hazardous substances remain below regulatory thresholds, protecting worker health while supporting compliance with industrial hygiene standards and environmental regulations governing air emissions.

Pharmaceutical Manufacturing Clean Rooms

In the highly regulated pharmaceutical manufacturing industry, Mixed Flow Fans serve as critical components in clean room ventilation systems where air quality directly impacts product safety and regulatory compliance. These specialized environments require precise control over airborne particulates, temperature, humidity, and pressure differentials between adjacent spaces to prevent cross-contamination. Mixed Flow Fans, with their ability to deliver consistent airflow while generating sufficient pressure to overcome HEPA filtration resistance, provide an ideal solution for maintaining these strict environmental parameters. Xi'an Xunling's Mixed Flow Fan series, with ISO 9001 certification, delivers the reliability and performance documentation essential for validation in GMP (Good Manufacturing Practice) environments. The low noise operation of these fans—as low as 31 dB in smaller models—minimizes workplace stress in clean rooms where operators may spend entire shifts. The range of available fan diameters (100-315 mm) allows system designers to appropriately size ventilation components for spaces ranging from small aseptic filling areas to large-scale production facilities. Furthermore, the energy-efficient operation of these fans helps reduce the substantial power consumption associated with pharmaceutical clean room operations, where air typically must be completely exchanged 20-60 times per hour. The consistent performance characteristics of Mixed Flow Fans also support the maintenance of appropriate pressure cascades between adjacent clean room spaces of different classifications, preventing contamination migration while facilitating material and personnel flow through properly designed airlocks and transitions.

Food Processing Facilities

The food processing industry presents unique ventilation challenges that Mixed Flow Fans are particularly well-suited to address. These facilities must maintain high standards of air quality to prevent contamination while managing temperature and humidity levels critical for food safety and product quality. Mixed Flow Fans play an essential role in exhaust systems that remove heat, moisture, and odors generated during food preparation and processing operations. The high efficiency design of these fans—combining axial and centrifugal principles—allows them to move large volumes of air while overcoming the resistance of filters and grease traps common in food facility ventilation. Xi'an Xunling's Mixed Flow Fan series, with capacities ranging from 220 to 2900 m³/h, provides options for various zones within food processing operations, from small packaging areas to large cooking lines. The durable PP construction offers excellent resistance to cleaning chemicals and humid environments typical in these facilities, extending operational life even under rigorous sanitation protocols. Additionally, the moderate noise levels (31-65 dB depending on model) help maintain a more comfortable working environment in already noisy production areas. The energy efficiency of these fans contributes to controlling operational costs in an industry with typically thin profit margins where continuous ventilation is necessary. For temperature-sensitive areas such as refrigerated zones or cold storage, Mixed Flow Fans provide the pressure capabilities needed to overcome the additional resistance of cooling coils while maintaining required air change rates. Their reliable performance supports compliance with food safety regulations that specify ventilation requirements for preventing cross-contamination and maintaining appropriate environmental conditions throughout diverse processing operations.

Commercial and Institutional Ventilation Applications

Mixed Flow Fans have become increasingly popular in commercial buildings and institutional facilities where balanced ventilation performance, energy efficiency, and space constraints must all be addressed simultaneously.

Educational Laboratory Facilities

Educational institutions ranging from high schools to advanced research universities rely on Mixed Flow Fans to create safe, comfortable learning environments in their laboratory facilities. These specialized educational spaces present unique ventilation challenges, requiring systems that can effectively remove potentially harmful substances while maintaining appropriate air exchange rates for occupant comfort and safety. Mixed Flow Fans, with their combination of high airflow capacity and moderate static pressure, provide an ideal solution for these applications. Xi'an Xunling's Mixed Flow Fan series, featuring models with airflow capacities from 220 to 2900 m³/h, allows for appropriate sizing based on the laboratory size and function—whether it's a small high school chemistry lab or a sophisticated university research facility. The low noise operation, with smaller units producing just 31 dB, creates an environment conducive to instruction and student concentration. This is particularly important in teaching laboratories where verbal communication is essential for effective learning. The energy efficiency of these fans helps educational institutions manage operational costs while meeting ventilation requirements. For university facilities conducting more advanced experiments, the higher capacity models with static pressure ratings up to 630 Pa can effectively ventilate sophisticated fume hood systems and specialized research equipment. The durable PP construction ensures longevity in educational settings where maintenance budgets may be limited and equipment is expected to serve for many years. Additionally, the compact design of Mixed Flow Fans allows for installation in space-constrained renovation projects where older educational buildings are being updated to meet current ventilation standards and safety requirements for modern laboratory instruction.

Healthcare Facility Isolation Rooms

In healthcare environments, Mixed Flow Fans play a critical role in ventilation systems for isolation rooms and other specialized medical spaces where airborne infection control is paramount. These areas require precise negative or positive pressure relationships with adjacent spaces to prevent cross-contamination while maintaining appropriate air exchange rates. Mixed Flow Fans provide the consistent performance necessary for these demanding applications, delivering reliable pressure generation while accommodating the high filtration levels typically required in healthcare ventilation. Xi'an Xunling's Mixed Flow Fan series, with CE certification confirming compliance with relevant safety standards, offers healthcare facility engineers a range of options for designing effective isolation room ventilation systems. The available fan diameters (100-315 mm) and corresponding capacities (220-2900 m³/h) allow for appropriate sizing based on room volume and required air exchange rates—typically 12-15 air changes per hour for isolation rooms. The low noise operation is particularly beneficial in healthcare settings where patient comfort and rest are essential components of the healing environment. With noise levels as low as 31 dB in smaller units, these fans can operate continuously without creating disruptive sound levels. The energy efficiency of Mixed Flow Fans helps healthcare facilities manage the substantial operational costs associated with 24/7 ventilation requirements. For airborne infection isolation rooms (AIIRs), the fans' ability to maintain consistent negative pressure differentials is essential for preventing the escape of potentially infectious aerosols, while for protective environment rooms housing immunocompromised patients, the same fans can reliably maintain positive pressure to exclude harmful particles and microorganisms from the patient environment.

Commercial Kitchen Exhaust Systems

Commercial kitchens in restaurants, hotels, institutional cafeterias, and food service facilities rely on robust ventilation systems to remove heat, moisture, smoke, and cooking odors while maintaining comfortable working conditions. Mixed Flow Fans have emerged as an excellent solution for these demanding applications, offering the necessary performance characteristics while addressing the space constraints often present in commercial buildings. The hybrid design of these fans enables them to generate sufficient pressure to overcome the substantial resistance presented by grease filters, fire suppression systems, and extended ductwork runs, while still delivering the high air volume required for effective kitchen ventilation. Xi'an Xunling's Mixed Flow Fan series provides options that align with various kitchen sizes and cooking intensities, from smaller operations with minimal equipment to large institutional facilities with multiple cooking lines. The fans' rotation speeds of 2450-2600 r/min deliver consistent performance even under the variable load conditions typical in kitchen operations, where cooking intensity may fluctuate throughout service periods. The durable PP construction offers resistance to the grease-laden, moisture-rich environment characteristic of kitchen exhaust streams, extending operational life and reducing maintenance requirements. For larger commercial kitchens, the high-capacity models delivering up to 2900 m³/h provide sufficient airflow to manage multiple hood sections while maintaining capture velocity at the cooking surface. The energy efficiency of these fans is particularly valuable in food service operations where profit margins are often tight and utility costs represent a significant operational expense. Additionally, the moderate noise levels help maintain a more comfortable working environment for kitchen staff already contending with the inherent noise of cooking operations and dish washing.

Conclusion

Mixed Flow Fans have proven themselves as versatile, efficient ventilation solutions across numerous applications where balanced airflow performance is essential. From laboratory environments requiring precise contamination control to industrial facilities managing process ventilation, these innovative fans deliver reliable performance while offering advantages in space utilization, energy efficiency, and operational noise. Their unique hybrid design, combining the best features of axial and centrifugal technologies, positions them as an optimal choice for demanding ventilation applications.

Why Choose Xi'an Xunling Electronic Technology Co., Ltd. for Your Mixed Flow Fan Needs? We don't just sell products – we deliver complete ventilation solutions tailored to your specific requirements. With our 5-day delivery, 5-year warranty, custom-made capabilities, and comprehensive one-stop service, we ensure your project succeeds from specification to installation and beyond. Experience the difference that engineering excellence makes! Ready to optimize your ventilation system with industry-leading Mixed Flow Fans? Contact our expert team today at xalabfurniture@163.com to discuss your specific requirements and discover how our solutions can enhance your facility's performance.
