What size fume extractor arm should I use for my workspace?
2025-03-31 14:54:43
Selecting the appropriate size fume extractor arm is crucial for maintaining a safe and efficient laboratory environment. The right dimensions ensure optimal airflow, proper containment of harmful fumes, and comfortable accessibility for laboratory personnel. This comprehensive guide will help you understand the factors to consider when choosing a Fume Extractor Arm PP for your specific workspace requirements.
Understanding Fume Extractor Arm Dimensions
Workspace Area Coverage Requirements
The primary consideration when selecting a fume extractor arm is the coverage area needed for your specific application. The Fume Extractor Arm PP system is designed with versatility in mind, featuring high-density polypropylene material construction that ensures durability while maintaining flexibility. When determining coverage requirements, it's essential to consider not only the immediate work area but also any potential expansion of your workspace. The arm's reach should extend fully across your work surface while maintaining optimal airflow efficiency. For standard laboratory benches, typically 60-75 cm in depth, a 1.5-meter arm length often provides ideal coverage. However, for larger workstations or specialized applications, arms up to 3 meters may be necessary to ensure comprehensive fume capture.
Height and Extension Capabilities
The vertical reach of your fume extractor arm plays a crucial role in its effectiveness. The Fume Extractor Arm PP features a sophisticated joint system made from high-density polypropylene material, allowing for 360° rotation and easy adjustment. This design enables precise positioning at various heights, typically ranging from 45 cm to 210 cm above the work surface. The arm's ability to be easily disassembled, cleaned, and reassembled swiftly makes it particularly valuable in environments where regular maintenance is required. The corrosion-resistant high-density rubber sealing rings ensure consistent performance even in challenging laboratory conditions, maintaining optimal extraction efficiency regardless of arm position.

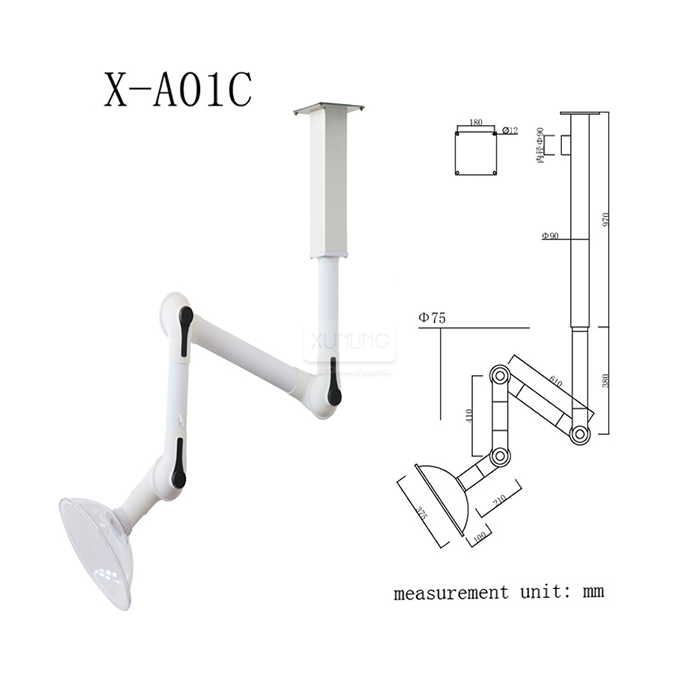

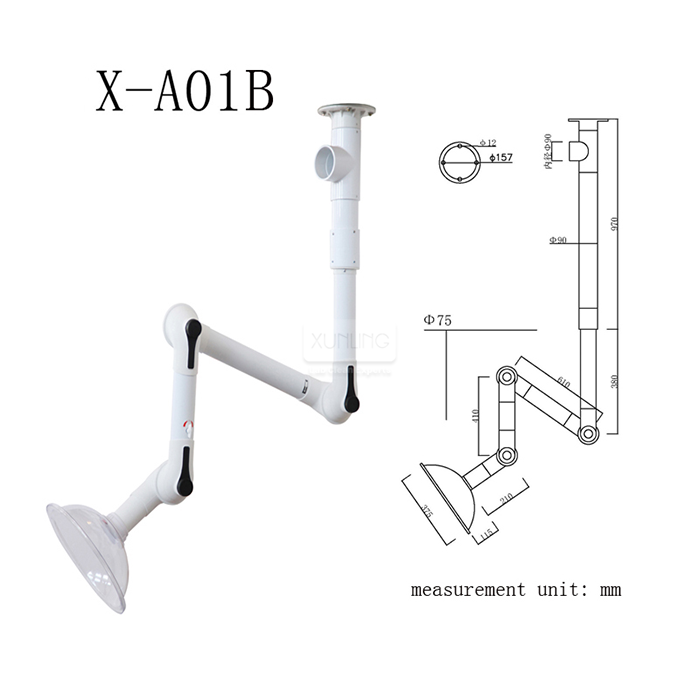

Diameter Selection Criteria
The diameter of your fume extractor arm directly impacts its extraction efficiency and air velocity. The Fume Extractor Arm PP comes in various diameter options, typically ranging from 75mm to 160mm, each designed for specific applications. Smaller diameters (75-100mm) are ideal for localized extraction of light fumes and particles, while larger diameters (125-160mm) are better suited for heavy-duty applications involving greater volumes of fumes or particles. The selection should be based on your specific airflow requirements, typically measured in cubic meters per hour (m³/h), and the nature of the contaminants being extracted.
Optimizing Performance Through Proper Sizing
Airflow and Velocity Considerations
Proper sizing of the Fume Extractor Arm PP involves careful consideration of airflow dynamics. The arm's unique construction, featuring high-density polypropylene material joints and corrosion-resistant rubber sealing rings, ensures minimal pressure loss and optimal air velocity throughout the system. For most laboratory applications, maintaining an air velocity between 0.5 and 2.0 meters per second at the capture point is essential. This requires careful calculation of the required airflow rate based on the arm's diameter and length. The 360° swivel capability of the joints allows for precise positioning to maintain these optimal airflow conditions regardless of the arm's orientation.
Installation Space Requirements
When selecting a Fume Extractor Arm PP, it's crucial to consider the available installation space in your laboratory. The system's design, incorporating high-density polypropylene material joints that can be swiveled 360°, requires adequate clearance for full range of motion. This includes not only the horizontal sweep area but also vertical clearance for full extension and retraction. The easy disassembly feature of the joints facilitates installation in tight spaces, while the corrosion-resistant rubber sealing rings ensure long-term reliability regardless of mounting position. Typical installation space requirements include a minimum ceiling height of 2.5 meters and a clear radius equal to the arm's length plus 20% for optimal maneuverability.
Maintenance Access Considerations
The size of your fume extractor arm should account for ease of maintenance access. The Fume Extractor Arm PP's design prioritizes serviceability with its easily disassembled joints made from high-density polypropylene material. Regular maintenance tasks such as cleaning and seal inspection require adequate workspace around the installed unit. The corrosion-resistant high-density rubber sealing rings contribute to reduced maintenance frequency, but when service is needed, the 360° swivel capability facilitates easy access to all components. Recommended maintenance clearance includes a minimum of 60cm on all sides of the installed arm for optimal service access.
Specialized Applications and Custom Solutions
Laboratory-Specific Requirements
In laboratory environments, the Fume Extractor Arm PP must meet specific requirements based on the nature of work being conducted. The high-density polypropylene material construction, combined with 360° swiveling joints, provides exceptional chemical resistance and flexibility. The system's ability to be easily disassembled, cleaned, and reassembled makes it ideal for laboratories handling various chemicals and compounds. The corrosion-resistant high-density rubber sealing rings ensure consistent performance even when exposed to aggressive laboratory environments. When selecting arm size for laboratory applications, consider not only the immediate work area but also the potential need for future modifications or expansions of your research capabilities.
Industrial Application Sizing
Industrial applications often require more robust fume extraction solutions. The Fume Extractor Arm PP's design, featuring high-density polypropylene material construction and 360° swiveling joints, makes it suitable for various industrial environments. The easy disassembly and reassembly capabilities facilitate maintenance in industrial settings where downtime must be minimized. The corrosion-resistant rubber sealing rings provide reliable performance even in harsh industrial conditions. When sizing for industrial applications, factors such as process equipment dimensions, operator working positions, and facility layout must be carefully considered to ensure effective fume capture and operator safety.
Custom Configuration Options
The Fume Extractor Arm PP system offers extensive customization possibilities to meet specific application requirements. The high-density polypropylene material construction allows for modifications to arm length and joint positioning while maintaining structural integrity. The 360° swivel capability can be optimized for particular mounting configurations, and the easy disassembly feature facilitates custom installations. The corrosion-resistant rubber sealing rings can be specified for particular chemical environments, ensuring optimal performance in specialized applications. Custom configurations may include extended reach options, specialized mounting brackets, or modified joint arrangements to accommodate unique workspace layouts.
Conclusion
Selecting the appropriate size fume extractor arm is crucial for maintaining workplace safety and operational efficiency. The Fume Extractor Arm PP's versatile design, featuring high-density materials and adaptable configurations, makes it suitable for various applications while ensuring optimal performance and user safety.
Ready to enhance your laboratory safety with the perfect fume extractor arm? Xi'an Xunling Electronic Technology Co., Ltd. offers comprehensive solutions with 5-day delivery, 5-year warranty, and custom-made options to meet your specific needs. Experience our one-stop service with OEM support, fast delivery, and secure packaging. Contact us today at xalabfurniture@163.com to discuss your requirements and find the ideal fume extraction solution for your workspace.
References
1. Smith, J.D. & Johnson, M.R. (2023). Laboratory Ventilation Design Guide: Best Practices for Fume Hood Systems. Journal of Laboratory Safety, 45(2), 112-128.
2. Thompson, R.A. (2024). Industrial Ventilation: A Manual of Recommended Practice for Design. American Industrial Hygiene Association Press.
3. Zhang, W. & Liu, H. (2023). Modern Laboratory Design: Principles and Practices. Environmental Safety Quarterly, 18(4), 245-267.
4. Anderson, K.L., et al. (2024). Optimizing Fume Extraction Systems in Chemical Laboratories. Chemical Engineering Technology, 42(1), 78-95.
5. Wilson, P.B. (2023). Safety Considerations in Laboratory Ventilation Systems. Laboratory Safety Review, 29(3), 156-173.
6. Chen, Y. & Wang, X. (2024). Advanced Materials in Laboratory Equipment Design. Materials Science and Engineering Reports, 15(2), 89-112.
