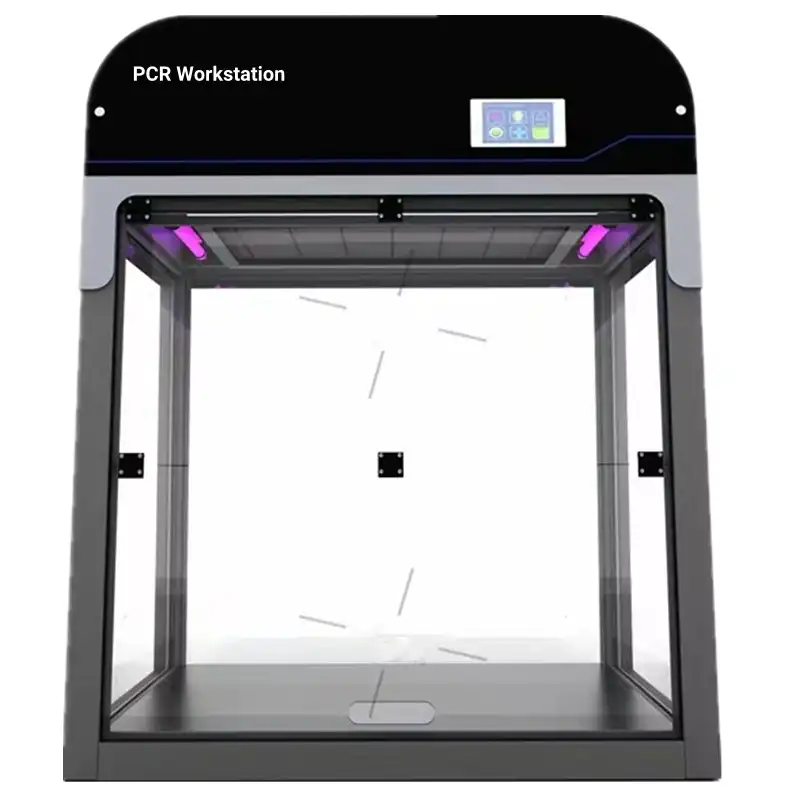

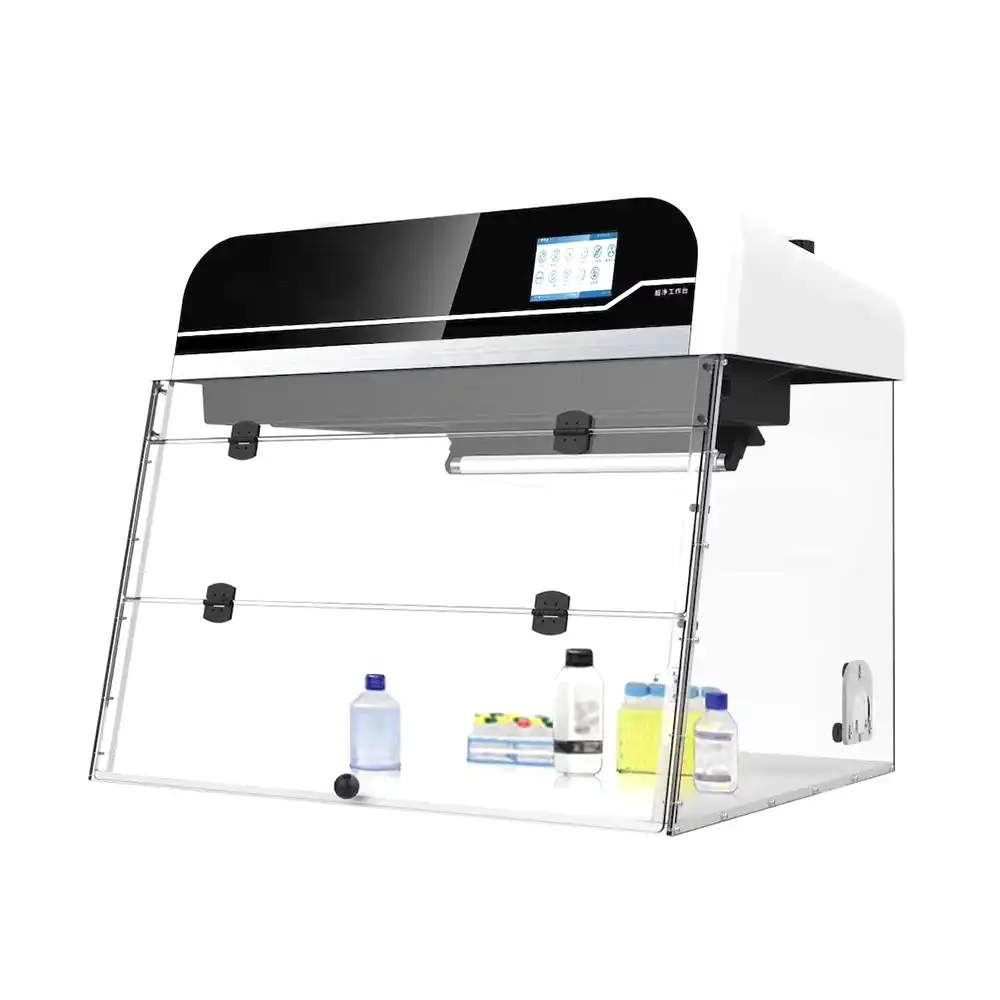

What is a PCR workstation?

A PCR workstation is a specialized laboratory equipment designed to provide a controlled, contamination-free environment for conducting Polymerase Chain Reaction (PCR) experiments and related molecular biology procedures. These sophisticated workstations combine advanced filtration technology, UV sterilization, and ergonomic design to ensure accurate and reliable PCR results while protecting both samples and operators. As molecular biology techniques continue to evolve, PCR workstations have become essential tools in modern laboratories, offering comprehensive solutions for DNA/RNA work, sample preparation, and analysis.

Understanding the Fundamentals of PCR Workstations

Basic Components and Design Architecture

The PCR workstation represents a remarkable achievement in laboratory equipment engineering, incorporating multiple sophisticated components to create an ideal environment for molecular biology work. At its core, the workstation features a carefully designed enclosed workspace constructed from high-quality materials such as stainless steel and tempered glass, ensuring durability and ease of cleaning. The workspace is typically equipped with built-in LED lighting systems that provide optimal visibility while generating minimal heat, crucial for maintaining sample integrity. Advanced models incorporate ergonomic design elements, including angled front panels and adjustable working heights, to reduce operator fatigue during extended use. The integration of these components creates a seamless workflow environment that significantly enhances laboratory efficiency and experimental accuracy.

Advanced Filtration and Air Purification Systems

The filtration system in a PCR workstation represents one of its most critical components, employing multiple stages of air purification to maintain sample integrity. The system typically begins with pre-filters that capture larger particles, followed by HEPA filters that remove 99.99% of particles as small as 0.3 microns. Some advanced models incorporate additional molecular filters that can trap volatile organic compounds and other chemical contaminants. The airflow is carefully engineered to create a laminar flow pattern, moving filtered air downward across the work surface in a uniform manner. This design prevents turbulence and ensures that any potential contaminants are consistently directed away from sensitive samples, maintaining the sterile environment necessary for successful PCR experiments.

Control Systems and User Interface

Modern PCR workstations feature sophisticated control systems that allow researchers to monitor and adjust various parameters with precision. The user interface typically includes touch-screen displays or membrane control panels that provide access to essential functions such as UV sterilization timing, airflow settings, and lighting controls. Advanced models incorporate programmable features that allow users to set up automated sterilization cycles and customize operating parameters based on specific experimental requirements. The control systems often include safety interlocks that prevent UV exposure when the workstation is occupied and monitor filter life and performance, ensuring consistent protection for both operators and samples.

Key Features and Applications

Contamination Prevention and Sterilization Methods

The PCR workstation incorporates multiple layers of contamination prevention strategies, making it an indispensable tool in molecular biology laboratories. The enclosed operating area maintains negative pressure, effectively preventing external contaminants from entering the workspace. UV sterilization capabilities are integrated into the design, with specialized UV lamps strategically placed to ensure comprehensive coverage of the work area. The sterilization process can be programmed for different durations and intensities, allowing researchers to maintain sterile conditions before and after experimental procedures. Additionally, the workstation's surfaces are typically treated with antimicrobial coatings that provide an extra layer of protection against potential contamination sources.

Versatility in Laboratory Applications

The PCR workstation demonstrates remarkable versatility in supporting various molecular biology applications beyond basic PCR procedures. Researchers can utilize the controlled environment for DNA/RNA extraction, sample preparation, and other sensitive molecular biology techniques. The spacious work area accommodates various equipment and tools, while built-in electrical outlets and cable ports enable the integration of additional instruments as needed. The workstation's design also considers the requirements of different experimental protocols, providing flexibility in setup and operation while maintaining consistent environmental control.

Safety Features and Operator Protection

Safety considerations are paramount in the design of PCR workstations, with multiple features implemented to protect both operators and samples. The UV sterilization system includes safety interlocks that prevent activation when the workspace is accessed, eliminating the risk of UV exposure. The filtration system effectively removes potentially harmful aerosols and particulates, creating a safe working environment for handling biological materials. Additional safety features include spill containment systems, emergency shut-off capabilities, and ergonomic design elements that reduce the risk of operator injury during extended use.

Performance and Technical Specifications

Operational Parameters and Performance Metrics

PCR workstations are engineered to meet stringent performance requirements, ensuring reliable operation across various laboratory conditions. The airflow system maintains precise control over air velocity and distribution, typically operating at speeds between 0.3 and 0.5 m/s to ensure effective containment without disrupting sensitive samples. The filtration system achieves a minimum efficiency of 99.99% for particles at 0.3 microns, with some advanced models offering even higher filtration efficiency. UV sterilization systems typically operate at 254nm wavelength, providing effective germicidal action while protecting sensitive materials from damage. These performance metrics are regularly monitored and maintained through integrated sensor systems that alert users to any deviations from optimal operating conditions.

Maintenance Requirements and System Monitoring

Maintaining optimal performance of PCR workstations requires regular monitoring and maintenance procedures. The filtration system includes pressure differential monitors that indicate when filter replacement is necessary, typically after 3000-5000 hours of operation depending on usage patterns and environmental conditions. UV lamp life is monitored through built-in hour meters, with replacement recommended after approximately 5000 hours of use to maintain effective sterilization capability. The control system provides comprehensive monitoring of all critical parameters, including airflow rates, filter status, and UV lamp condition, ensuring consistent performance and alerting users to any maintenance requirements.

Integration with Laboratory Infrastructure

PCR workstations are designed to integrate seamlessly with existing laboratory infrastructure and workflows. The units typically require standard electrical connections and can be configured to accommodate various power supply requirements. Advanced models may include data ports for connecting to laboratory information management systems (LIMS) or other monitoring networks. The workstation's physical dimensions and mobility features are carefully considered to ensure compatibility with standard laboratory furniture and space constraints, while still providing adequate workspace for experimental procedures.

Conclusion

The PCR workstation represents a crucial advancement in laboratory equipment technology, providing essential protection for sensitive molecular biology procedures while ensuring operator safety and experimental reliability. Its comprehensive features, from advanced filtration systems to UV sterilization capabilities, make it an indispensable tool in modern research facilities. Ready to elevate your laboratory capabilities? Experience the excellence of our custom-made PCR workstations with industry-leading features including 5-day delivery, 5-year warranty, and comprehensive OEM support. Our one-stop service ensures you receive exactly what your laboratory needs, backed by fast delivery and secure packaging. Contact us today at xalabfurniture@163.com to discuss your specific requirements and join the growing network of satisfied laboratory professionals worldwide.
