How does an aluminum alloy fume extractor arm work?

The aluminum alloy fume extractor arm represents a sophisticated solution for laboratory air quality management, combining advanced engineering with practical functionality. This innovative system utilizes a flexible, articulated design to capture and remove harmful fumes, vapors, and particulates directly from their source. Through a combination of mechanical joints, aerodynamic principles, and precision engineering, the Fume Extractor Arm Aluminum Alloy creates a controlled airflow pattern that effectively contains and extracts airborne contaminants, ensuring a safer laboratory environment.

Engineering Principles and Design Components

Mechanical Structure and Materials

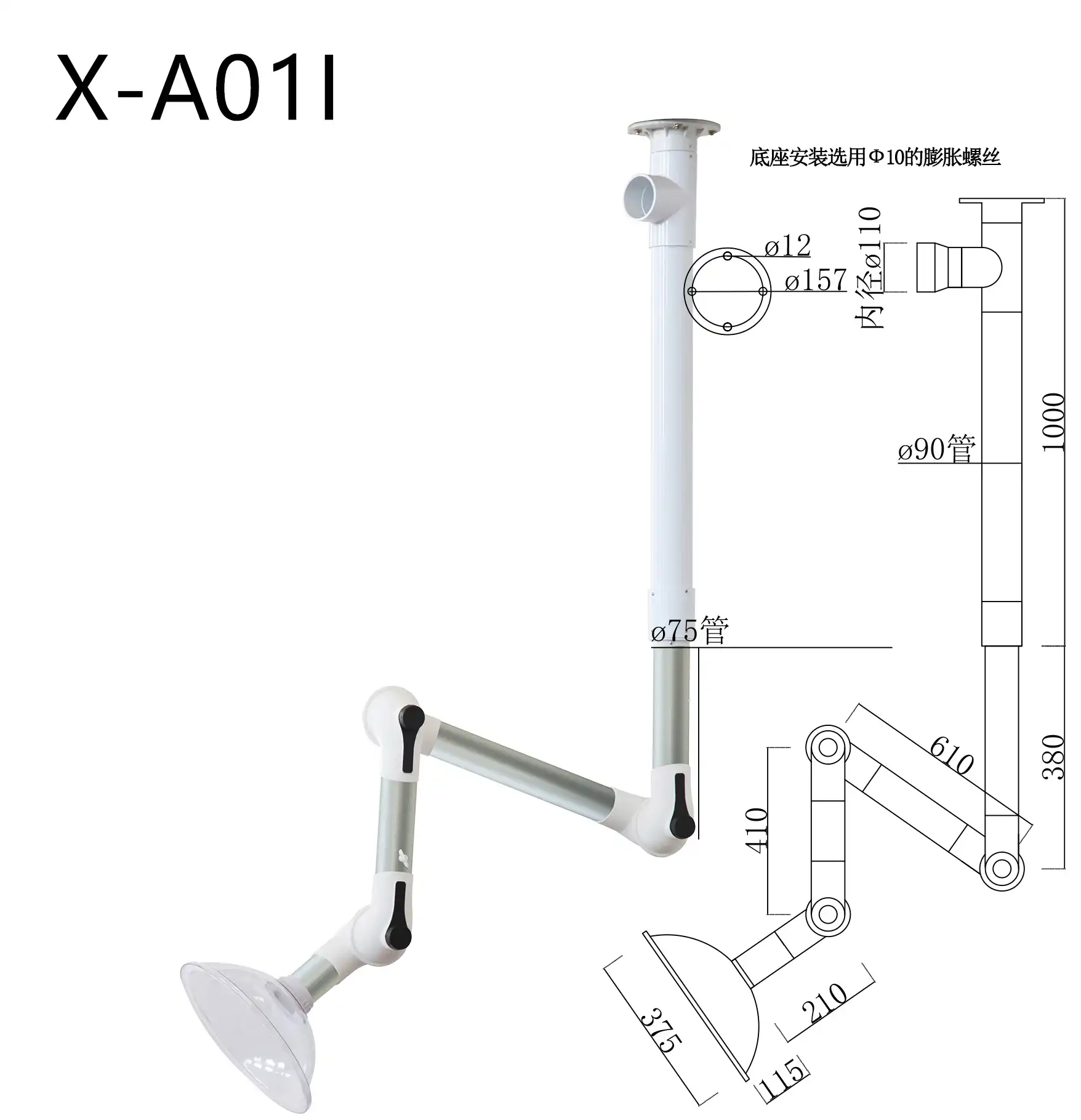

The foundation of the Fume Extractor Arm Aluminum Alloy's effectiveness lies in its carefully engineered construction. The system employs high-quality aluminum alloy materials that provide an optimal balance of strength and lightweight performance. The joints incorporate high-density polypropylene material, enabling 360-degree rotation while maintaining structural integrity. The arm's total length can extend to 2.7 meters when fully stretched, offering exceptional coverage area. The incorporation of corrosion-resistant high-density rubber sealing rings ensures longevity and reliable performance even in challenging laboratory environments. This robust construction supports air flow rates of 150-350 m³/h and suction capacities of 25-45 Pa, while maintaining noise levels below 50 dB, making it suitable for concentrated laboratory work.

Aerodynamic Performance

The aerodynamic design of the Fume Extractor Arm Aluminum Alloy optimizes airflow patterns for maximum extraction efficiency. The system's engineering accounts for various factors including pressure differentials, air velocity, and capture zone characteristics. The arm's design enables it to maintain consistent suction power across its entire range of motion, ensuring effective fume capture regardless of position. With temperature resistance up to 120°C, it can handle a wide range of laboratory applications while maintaining optimal performance. The system's lightweight design (6-8 kg) doesn't compromise its robust extraction capabilities, making it both practical and efficient.

Control and Integration Systems

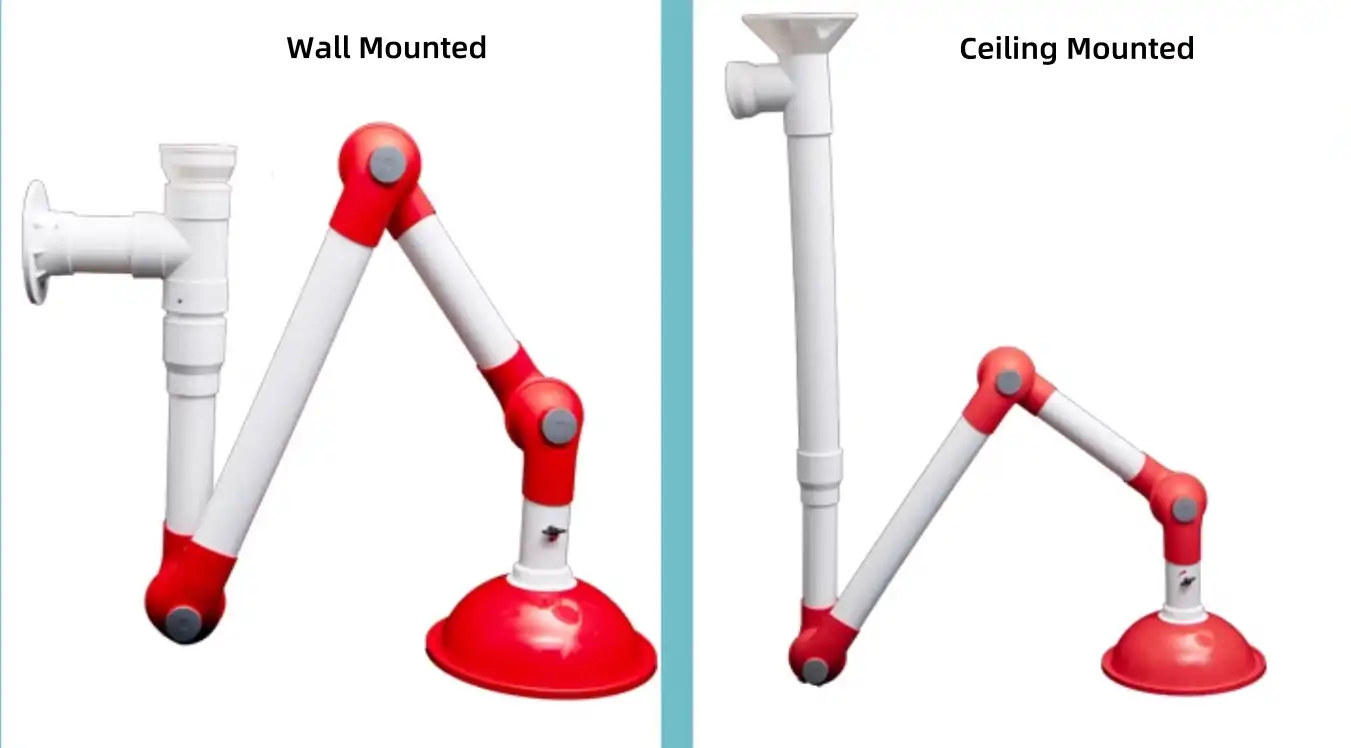

Modern laboratory environments demand sophisticated control systems, and the Fume Extractor Arm Aluminum Alloy delivers with advanced integration capabilities. The system features multiple mounting options (wall-mounted, ceiling-mounted, or desk-mounted) to accommodate various laboratory layouts. The control mechanism allows for precise adjustment of airflow rates and positioning, enabling users to optimize performance for specific applications. The integration system includes safety features and monitoring capabilities that ensure consistent performance while maintaining laboratory safety standards.

Performance and Application Scenarios

Laboratory Safety Enhancement

The Fume Extractor Arm Aluminum Alloy plays a crucial role in maintaining laboratory safety standards. Its high-strength aluminum alloy construction provides exceptional durability while resisting corrosion, ensuring long-term reliability in demanding laboratory environments. The system's ergonomic design reduces operator fatigue and improves workflow efficiency, contributing to a more comfortable and productive work environment. The arm's adjustable length and flexible design allow for optimal positioning, adapting to different laboratory configurations and working conditions. This adaptability ensures effective fume extraction across various laboratory scenarios while maintaining consistent performance levels.

Specialized Applications

The versatility of the Fume Extractor Arm Aluminum Alloy extends across multiple laboratory disciplines. In chemical laboratories, it effectively removes volatile fumes from chemicals, solvents, and hazardous substances. Biotechnology and molecular biology facilities benefit from its ability to maintain clean air during cell culture and genetic engineering experiments. Medical and veterinary laboratories rely on its protection against harmful chemicals and biological agents during routine testing. Environmental monitoring laboratories utilize its capabilities for capturing airborne pollutants, while food and cosmetics industry laboratories depend on it for maintaining air quality during product testing and quality control procedures.

Maintenance and Sustainability

The Fume Extractor Arm Aluminum Alloy is designed with sustainability and ease of maintenance in mind. The system's components are engineered for simple maintenance procedures, reducing laboratory downtime and ensuring consistent performance. Regular maintenance requirements are minimized through the use of high-quality materials and robust construction techniques. The system's energy-efficient operation contributes to reduced operational costs while maintaining optimal extraction performance. The sustainable design approach extends the equipment's operational lifespan while ensuring reliable protection for laboratory personnel.

Technical Specifications and Quality Assurance

Certification and Compliance

The Fume Extractor Arm Aluminum Alloy meets rigorous quality and safety standards, as evidenced by its comprehensive certification portfolio. The system holds CE certification, confirming compliance with European safety and environmental standards. ISO9001 certification ensures that manufacturing processes meet international quality management requirements. SGS certification validates the system's reliability and safety through rigorous quality checks. These certifications demonstrate Xi'an Xunling Electronic Technology's commitment to maintaining high standards in laboratory equipment manufacturing.

Performance Metrics

The technical specifications of the Fume Extractor Arm Aluminum Alloy demonstrate its superior performance capabilities. The system achieves airflow efficiency ratings of 200-500 CFM, enabling effective capture and filtration of airborne chemicals, fumes, and particulates. The arm's design optimizes capture velocity while maintaining energy efficiency, ensuring effective contaminant removal without excessive energy consumption. Performance testing validates the system's ability to maintain consistent extraction capabilities across its operational range, supporting various laboratory applications and requirements.

Cost-Effectiveness and Value Proposition

The Fume Extractor Arm Aluminum Alloy represents a cost-effective solution for laboratory air quality management. Xi'an Xunling Electronic Technology offers various configurations to accommodate different budget constraints without compromising performance or safety. The system's durability and low maintenance requirements contribute to reduced lifetime operational costs. The company's customer-centric service approach includes comprehensive technical guidance and timely assistance, ensuring optimal system performance and user satisfaction.

Conclusion

The Fume Extractor Arm Aluminum Alloy represents a crucial advancement in laboratory safety and air quality management. Its sophisticated engineering, versatile applications, and reliable performance make it an indispensable tool for modern laboratory environments, effectively combining safety, efficiency, and user-friendly operation.

Ready to enhance your laboratory's safety and efficiency? Xi'an Xunling Electronic Technology Co., Ltd. offers comprehensive solutions with advantages including 5-day delivery, 5-year warranty, custom-made options, and one-stop service. Our core services feature OEM support, fast delivery, and secure packaging. Contact us today at xalabfurniture@163.com to discuss your specific requirements.
