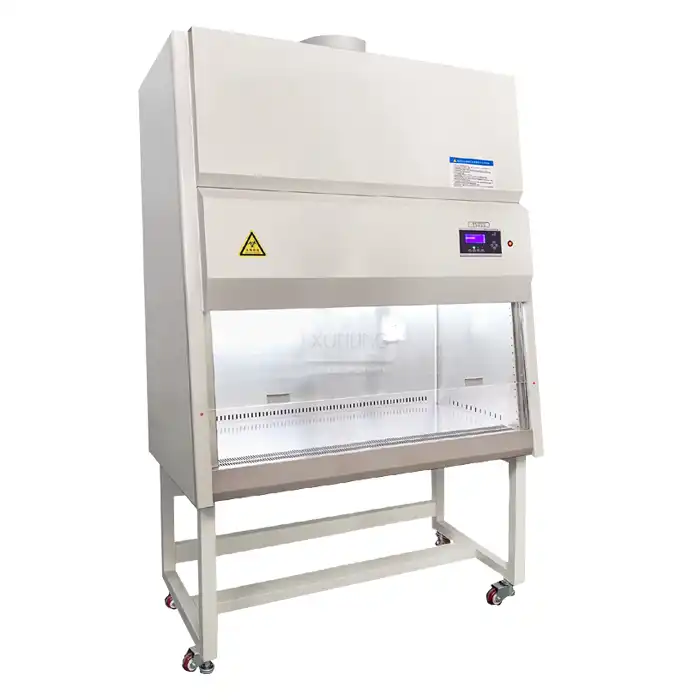

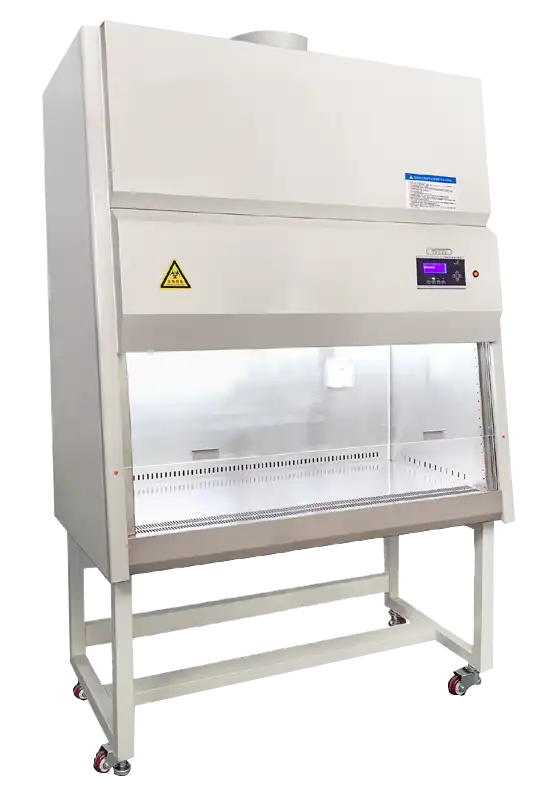

Class II Type B2 Biosafety Cabinet

Class II Type B2 Biosafety Cabinet

Instagram
A Class 2 Type B2 biosafety cabinet is a crucial piece of equipment used in laboratories for the safe handling of biohazardous materials. It provides a controlled environment that protects both the worker and the surrounding environment from contamination. Here are some key features of a Class 2 Type B2 cabinet:Airflow: It has a vertical laminar flow design, meaning air is filtered and flows downward over the work surface, removing potential contaminants.1.HEPA filtration: Both the incoming and outgoing air are filtered through High-Efficiency Particulate Air (HEPA) filters, ensuring that air leaving the cabinet is clean.2.Biological safety: This type is specifically designed for work involving hazardous agents, including radioactive materials or biohazardous and chemotoxic substances. The B2 classification indicates it has an additional feature for handling hazardous chemicals or radionuclides.3.Dual exhaust: It has two exhaust systems, one for contaminated air and another for hazardous materials, ensuring that these substances are properly contained and filtered before being exhausted.These cabinets are commonly used in microbiology, molecular biology, and other research fields where there is a risk of exposure to infectious agents or hazardous materials.
Product Description

Introduction to Class II Type B2 Biosafety Cabinet

Protect your laboratory personnel and environment with our state-of-the-art Class II Type B2 Biosafety Cabinet. Designed for the safe handling of biohazardous materials, including radioactive and chemotoxic substances, this cabinet ensures a controlled workspace that minimizes the risk of contamination. With advanced features like HEPA filtration, vertical laminar airflow, and dual exhaust systems, our biosafety cabinet is the ideal solution for your laboratory's safety needs.

Class II Type B2 Biosafety Cabinet

Technical Specifications

Parameter/model

BSC-1000II B2

BSC-1300II B2

BSC-1600II B2

Cleanliness grade

HEPA: ISO level 5 (Class 100 of 100)/ULPA: ISO level 4 (class 10 of 10)

Filter level/efficiency

HEPA:≥99.995%,@0.3μm/ULPA:≥99.999%,@0.12μm

Descent wind speed

0.33m/s

Suction air speed

0.53m/s

Noise

≤65dB

Vibration half peak

≤5μm

Biosafety personnel protection

CFU of all impact samplers≤10,CFU of slit samplers≤5

Product protection

CFU of all sampling dishes≤5

Cross contamination protection

CFU of all culture dishes ≤2

Workspace size

1000*520*640mm

1300*520*640 mm

1600*520*640 mm

Overall dimension of device

1165*760*2200mm

1465*760*2200 mm

1765*760*2200 mm

Specification of air supply filter

900*470*70*①

1290*470*70*①

1590*470*70*①

Specification of exhaust air filter

650*450*90*①

830*450*90*①

1130*450*90*①

Specification and quantity of

fluorescent lamp/UV lamp



30W*②/30W*①



40W*②/40W*①



40W*②/40W*①

Illuminance

≥900LX

≥900LX

>900LX

Weight

240kg

280kg

310kg

Product Details

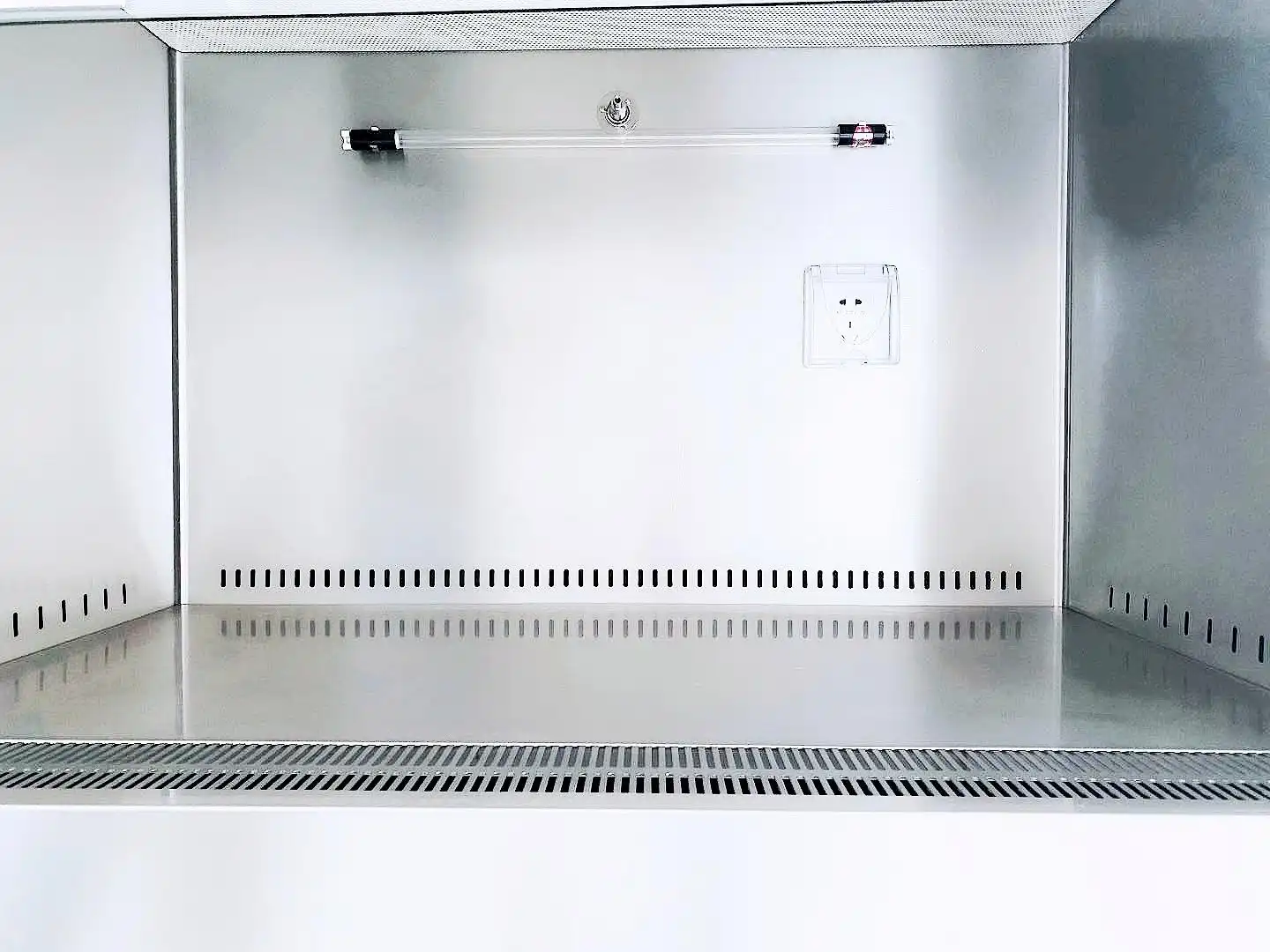

Our Class II Type B2 Biosafety Cabinet is engineered to provide superior protection for your laboratory staff and the environment. The cabinet features a robust construction with a stainless steel work surface, epoxy-coated steel exterior, and anti-UV safety glass front window. The spacious interior allows for comfortable and efficient work, while the adjustable height stand ensures optimal ergonomics for users of all sizes.

Class II Type B2 Biosafety Cabinet Features

  • Vertical laminar airflow for enhanced contamination control
  • Dual HEPA filtration for both input and exhaust air
  • Dedicated exhaust system for hazardous materials
  • Microprocessor-based control system with LCD display
  • Audible and visual alarms for air flow disruption and window position
  • Energy-efficient LED lighting and ECM blower motor
  • Optional UV light and electrical outlet for added convenience

Class II Type B2 Biosafety Cabinet price

Class II Type B2 Biosafety Cabinet supplier

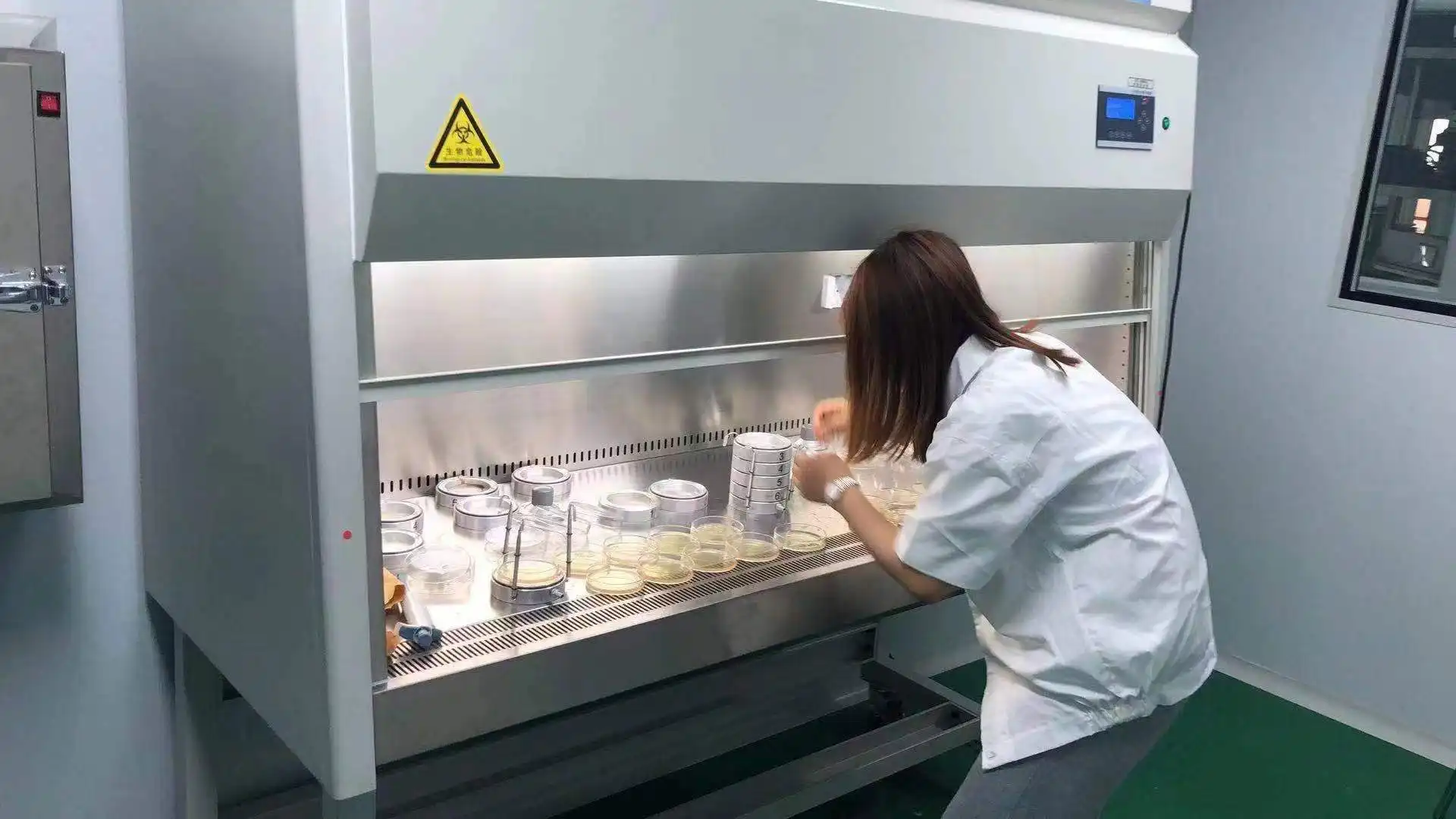

Class II Type B2 Biosafety Cabinet Application

The Class II Type B2 Biosafety Cabinet is an essential piece of laboratory equipment, specifically engineered for a diverse array of applications involving biohazardous materials. It provides a high level of protection for both users and the environment. Some of its key applications include:

  • Microbiology and Cell Culture: This cabinet is ideal for microbiological studies and cell culture work, ensuring the containment of potentially pathogenic microorganisms and preventing cross-contamination in sensitive experiments.
  • Molecular Biology and PCR: Widely used in molecular biology labs, it facilitates the safe handling of DNA/RNA, enzymes, and reagents during PCR (Polymerase Chain Reaction) processes, protecting both samples and operators.
  • Handling of Low to Moderate Risk Agents (BSL 1-3): The B2 cabinet is designed for working with biological agents categorized under Biosafety Levels 1 through 3, providing the necessary containment for experiments involving moderate risk pathogens.
  • Work with Hazardous Chemicals and Radionuclides: Its robust filtration system supports the safe manipulation of hazardous chemicals and radionuclides, minimizing exposure to potentially harmful substances during laboratory procedures.
  • Sterile Drug Preparation and Handling: The cabinet offers a sterile environment crucial for the preparation and handling of pharmaceuticals, ensuring that drugs are manufactured and tested without contamination.
  • Clinical Sample Processing and Testing: Used extensively in clinical laboratories, it aids in the processing, testing, and analysis of clinical samples, maintaining a contamination-free workspace to ensure accurate results.

After-Sales Support

We pride ourselves on providing exceptional after-sales support to ensure your biosafety cabinet operates at peak performance. Our services include:

Professional installation and on-site training

Regular maintenance and calibration

Prompt technical support and troubleshooting

Comprehensive warranty and flexible service contracts

Quality and Safety

Our cabinet is manufactured in accordance with the highest international standards, including NSF/ANSI 49, EN 12469, and ISO 14644.1. Each unit undergoes rigorous testing and certification to guarantee optimal performance and reliability. With our commitment to quality and safety, you can trust our biosafety cabinet to protect your laboratory personnel and environment.

FAQ

Q: What is the difference between a Type B2 and other Class II biosafety cabinets?

A : Type B2 cabinets are designed for work with hazardous chemicals and radionuclides, featuring a dedicated exhaust system for these material

Q: How often should the HEPA filters be replaced?

A:HEPA filters should be replaced when the airflow velocity falls below the specified range or when the cabinet fails certification, typically every 3-5 years depending on usage.

Q: Can the biosafety cabinet be moved after installation?

A: It is not recommended to move the cabinet after installation, as this may disrupt the airflow balance and compromise its performance. If relocation is necessary, it should be performed by trained professionals and followed by recertification.

Contact Us

For more information about our Class II Type B2 Biosafety Cabinet or to request a quote, please contact our sales team at xalabfurniture@163.com. We look forward to assisting you with your laboratory safety needs.
